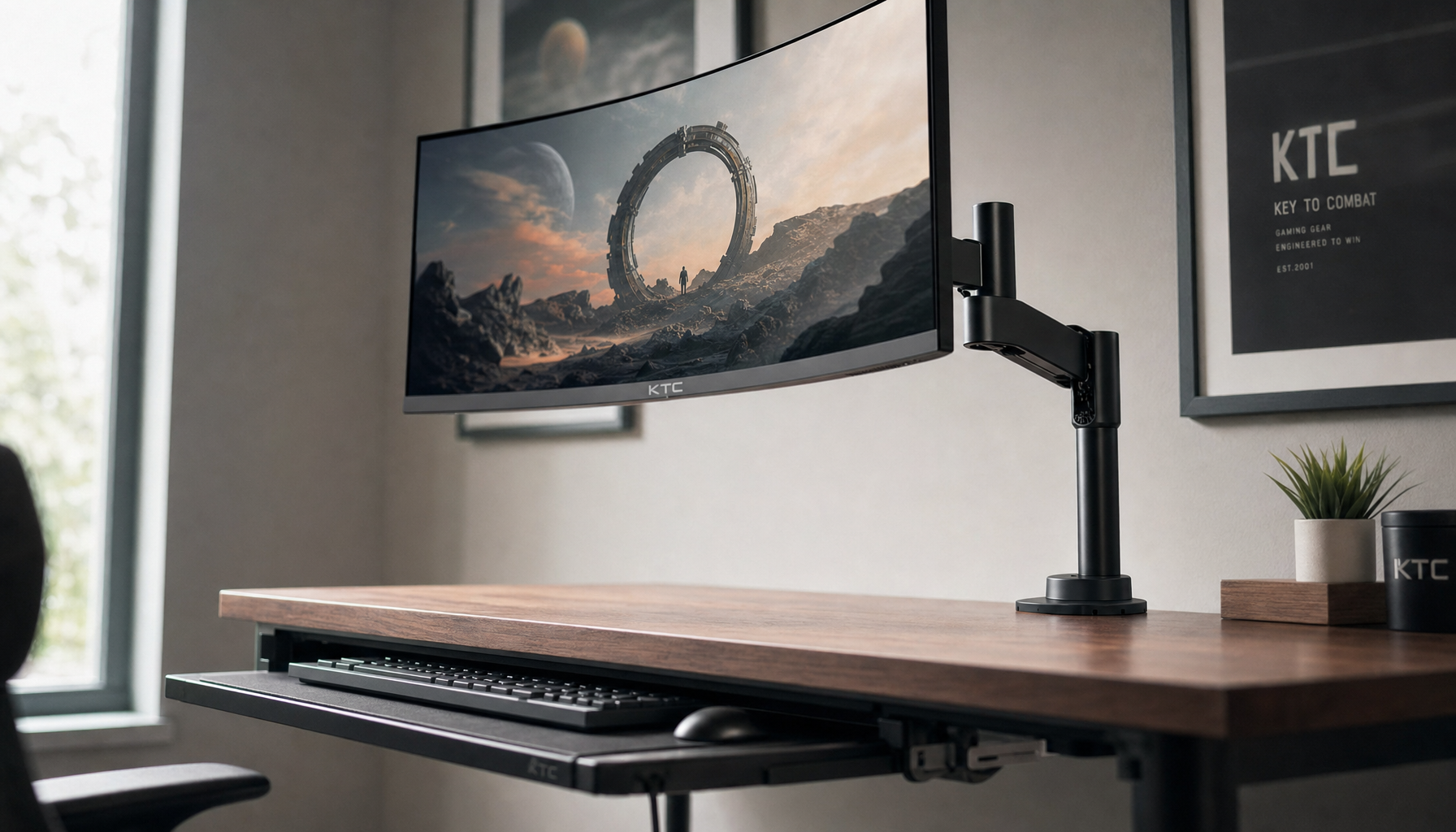

You can install a monitor arm on a desk with an under-desk keyboard tray if the clamp, grommet, arm swing, and tray track do not compete for the same space. The safest path is to measure the underside first, then choose a clamp, grommet, wall, or integrated workstation mount that clears the tray hardware.
Is your screen finally ready to float, but the keyboard tray underneath is blocking the clamp exactly where the arm wants to sit? A 10-minute clearance check can prevent tray collisions, monitor droop, cable pulling, and a wasted return. Here is the practical way to mount the arm cleanly while keeping both your screen and typing position dialed in.
Why Keyboard Trays Complicate Monitor Arm Installation
A monitor arm usually needs a strong mounting point at the back or side edge of the desk, while an under-desk keyboard tray often uses rails, a sliding track, screws, brackets, or a metal crossbar underneath the same surface. That overlap is the core problem. The monitor arm needs compression and leverage resistance; the tray needs smooth travel and knee clearance.
A standard clamp mount grips the desktop from above and below. If the keyboard tray track runs close to the rear edge, the lower clamp plate may hit the track, prevent full tightening, or force the arm into an unstable position. A grommet mount passes through a hole in the desk and tightens from below, which can work well, but only if the under-desk bolt and plate do not interfere with the tray mechanism.
The ergonomic payoff is worth solving. A good monitor arm lets you adjust screen height, angle, and reach, while an ergonomic keyboard tray keeps your hands and shoulders closer to a neutral position. Adjustable keyboard platforms are specifically promoted for reducing stress through the fingers, wrists, arms, shoulders, and elbows. For gaming, color work, spreadsheets, or long coding sessions, the winning setup is not just more desk space. It is a screen at eye-friendly height and input gear where your body can stay relaxed.
Start With the Clearance Check
Before buying anything, crawl under the desk with a tape measure and a flashlight. Measure the desktop thickness, the distance from the rear edge to the keyboard tray track, the width of the tray rail system, and the open space around any crossbar or support frame. Also slide the tray fully in and out while watching the underside. The tray’s moving path matters as much as its resting position.
Most clamp arms need a solid, flat clamping zone at the desk edge. Monitor arm installation guidance points to clamp mounts working best on firm desk edges roughly 0.4 to 3 inches thick, while grommet mounts are better when the desk already has a cable hole or when you want a more permanent anchor. If your tray rail sits within a few inches of the back edge, a clamp may still work on the left or right rear corner, but center mounting may be impossible.
For a real-world example, imagine a 30-inch-deep desk with a keyboard tray track that starts 7 inches from the front and extends 18 inches toward the back. That leaves only about 5 inches of underside depth near the rear edge. If your clamp’s lower bracket is 4 inches deep, it may fit, but the tray could still strike it when pushed in. In that case, shift the arm toward a rear corner, use a grommet hole behind the tray track, or choose a wall-mounted solution.
Choose the Right Mounting Method
The right mount is the one that clears the keyboard tray and safely supports the display. A desk clamp is fastest and usually reversible, but it needs an unobstructed edge. A grommet mount is cleaner and often more secure, but it requires an existing hole or drilling through the desktop. Wall mounting avoids the tray entirely, but it fixes the screen position relative to the wall rather than the desk, which is a problem for sit-stand desks.
No-drill mounting is attractive for renters and anyone protecting a premium desktop. Desk clamps are a common non-permanent option, but non-permanent specialty methods can be less stable than traditional drilled mounting. That is especially important with large gaming monitors, ultrawides, or dual-screen productivity setups.
Mount Type |
Works With Keyboard Tray? |
Best Use Case |
Main Tradeoff |
Rear desk clamp |
Yes, if tray rails do not block lower plate |
Fast install, no drilling |
Needs clear, strong desk edge |
Side desk clamp |
Often, if rear track is crowded |
Single monitor or angled workstation |
Arm reach may feel offset |
Grommet mount |
Yes, if underside plate clears tray |
Cleaner, more permanent setup |
May require drilling |
Wall mount |
Yes, because it avoids desk underside |
Fixed desk, maximum stability |
Poor fit for moving sit-stand desks |
Integrated monitor and keyboard unit |
Yes, by design |
Compact workstation or shared station |
Less flexible than separate parts |
Verify Monitor Compatibility Before Touching the Desk
A monitor arm is not just a clamp with a pole. It is a load-bearing system, and compatibility is non-negotiable. Check the monitor’s weight without its factory stand, the screen size range, and the VESA pattern on the back. Most standard arms use about 3 x 3-inch or 4 x 4-inch VESA spacing, and many mainstream displays fit one of those patterns.
The specs matter. A featured monitor arm example supports 17- to 32-inch displays, standard 3 x 3-inch and 4 x 4-inch VESA patterns, and up to 19.8 lb. Real-desk testing has found that some popular dual-monitor arms looked good in listings but performed poorly under actual load, while stronger arms held 27-inch and 32-inch screens without drooping. For an expensive OLED, high-refresh esports panel, or color-critical office display, leave margin instead of running the arm at its maximum rating.
A simple buying rule works well: if your monitor weighs 16 lb, do not buy an arm rated for 17 lb just because the spec technically passes. Choose a higher-capacity arm with a better clamp, stronger joints, and a longer warranty. Independent best monitor arms coverage consistently favors arms that hold position smoothly rather than merely fitting on paper.
Install the Arm Without Blocking the Tray
Clear the desktop first, then remove the monitor’s original stand while the panel is face down on a soft towel. Keep screws organized, because VESA screws can vary by monitor depth. If your arm has a detachable VESA plate, attach the plate to the monitor before lifting the display.
For a clamp install, position the upper clamp plate on the desk surface and check the lower plate from underneath before tightening. Keep the lower plate away from the tray rails, sliding track, and tray stop hardware. Tighten gradually, then slide the keyboard tray in and out several times before mounting the monitor. This dry run catches most collisions while the arm is still easy to reposition.
For a grommet install, remove the cable-hole cap or mark the hole location only after confirming the tray’s travel path. The underside washer or plate must sit flat against the desktop, not half on a rail or bracket. If your desk surface is thin particleboard, glass, or a soft laminate, use a reinforcement plate if the arm maker allows it. Standing-desk guidance warns that heavy multi-monitor setups can stress desktops and may need reinforcement to prevent warping or cracking.
Once the base is secure, assemble the arm segments, attach the monitor, and hold the display while adjusting tension. Gas spring arms usually need tension tuning so the screen neither sinks nor rises on its own. Mechanical arms may be less expensive, but they often require more deliberate repositioning.
Set Screen Height and Keyboard Position Together
Do not tune the monitor in isolation. Sit or stand in your normal posture, pull the keyboard tray into working position, then place your hands where they naturally type. Your shoulders should feel relaxed, and your wrists should not be forced upward. From there, bring the monitor to you.
A practical ergonomic target is to place the top of the screen at eye level or slightly lower, with your eyes landing a little below the top edge. Ergonomics notes connect low screens with forward head posture, while standing-desk guidance cites a useful rule of thumb: each inch of forward head tilt can add roughly 10 lb of effective load to the neck muscles. You do not need a medical chart to feel the difference. If you raise the screen and stop craning toward it, your neck and shoulders usually tell you quickly.
For dual monitors, align both screens at the same height unless one is clearly secondary. If one display is vertical for chat, code, documents, or streaming controls, keep the primary screen centered with the keyboard tray. This matters for competitive gaming and office productivity alike: your main viewing lane should match your typing and mouse lane.
Manage Cables So the Tray Still Moves
Cable routing can make or break the setup. Route power, DisplayPort, HDMI, USB-C, and hub cables along the monitor arm with slack at each joint. Then slide the keyboard tray fully in and out while watching every cable. A cable that looks tidy when the tray is open may snag when the tray retracts.
Use the arm’s clips or channels if they are large enough, but do not overpack them. Dual-arm testing notes that cable management can be difficult even on otherwise strong value arms, and some premium models still rely on basic zip ties. The goal is not showroom perfection. The goal is strain relief, full tray travel, and zero tugging on ports when you adjust the display.
A good test is to move the screen through its full height, swivel, and tilt range, then move the keyboard tray through its full travel. If nothing pulls, rubs, clicks, or blocks, the workstation is ready for daily use.
When an Integrated Monitor Arm and Keyboard Tray Makes More Sense
If your current desk underside is crowded, an integrated unit may be cleaner than fighting the hardware. An articulating flat-screen monitor arm with keyboard tray is built as a combined workstation component, and monitor arm with keyboard tray options are especially useful in compact, industrial, retail, medical, and shared work areas. Product notes also mention six standard baked enamel colors, which is a practical procurement detail when matching equipment lines or controlling custom finish costs.
A sit-stand converter with an integrated keyboard tray can also solve the conflict. The MI-7996 is described as a dual-monitor sit-stand desk mount with an integrated tray, and dual-monitor sit-stand designs are intended to free desk space compared with bulky desktop risers. The tradeoff is commitment: some integrated units drill into the desk for stability, so they are better for owned desks than rental furniture or temporary setups.
Quick Troubleshooting After Installation
If the monitor slowly sinks, increase arm tension in small turns while supporting the screen. If the clamp shifts, stop using the arm until the base is retightened on a flat, strong section of the desk. If the keyboard tray hits the clamp, do not force it; relocate the arm, switch to a grommet mount, or move the tray if its rails allow adjustment.
If the screen shakes while typing, the cause may be a flexible desktop, a loose clamp, a long arm fully extended, or a lightweight desk frame. Wall mounting can be the most stable option for a fixed desk, and testing has found that wall-mounted dual arms avoided desk vibration because the monitors were isolated from the work surface. For a standing desk, though, wall mounting usually creates a mismatch as the desk moves and the monitor does not.
FAQ
Can I clamp a monitor arm over the keyboard tray rail?
Usually no. The clamp plate needs full, flat contact with the underside of the desk. Clamping over a rail, screw head, or tray bracket reduces grip and can twist the mount under monitor weight.
Is drilling a grommet hole safer than using a clamp?
It can be more stable when done correctly, but only if the desktop material is strong and the underside plate clears the keyboard tray. For renters or expensive desks, a no-drill clamp remains attractive when the edge is unobstructed.
Should I remove the keyboard tray instead?
Only if the tray is poorly placed, too shallow, or blocking every safe mounting location. A good keyboard tray is still valuable because it can keep your input position lower and closer than the desktop surface.
A monitor arm and keyboard tray can absolutely coexist, but the desk underside decides the installation strategy. Measure first, protect the tray’s movement, give the monitor arm a strong mounting point, and tune the screen and keyboard as one workstation rather than separate accessories.
