Fix Console Audio Stutter from Refresh Rate Changes

Console audio usually stutters or crackles during refresh-rate changes because the display mode, digital display signal, VRR state, or audio route is being renegotiated. The monitor is not “changing the sound,” but its video timing can expose weak display links, delayed audio paths, or unstable monitor audio extraction.

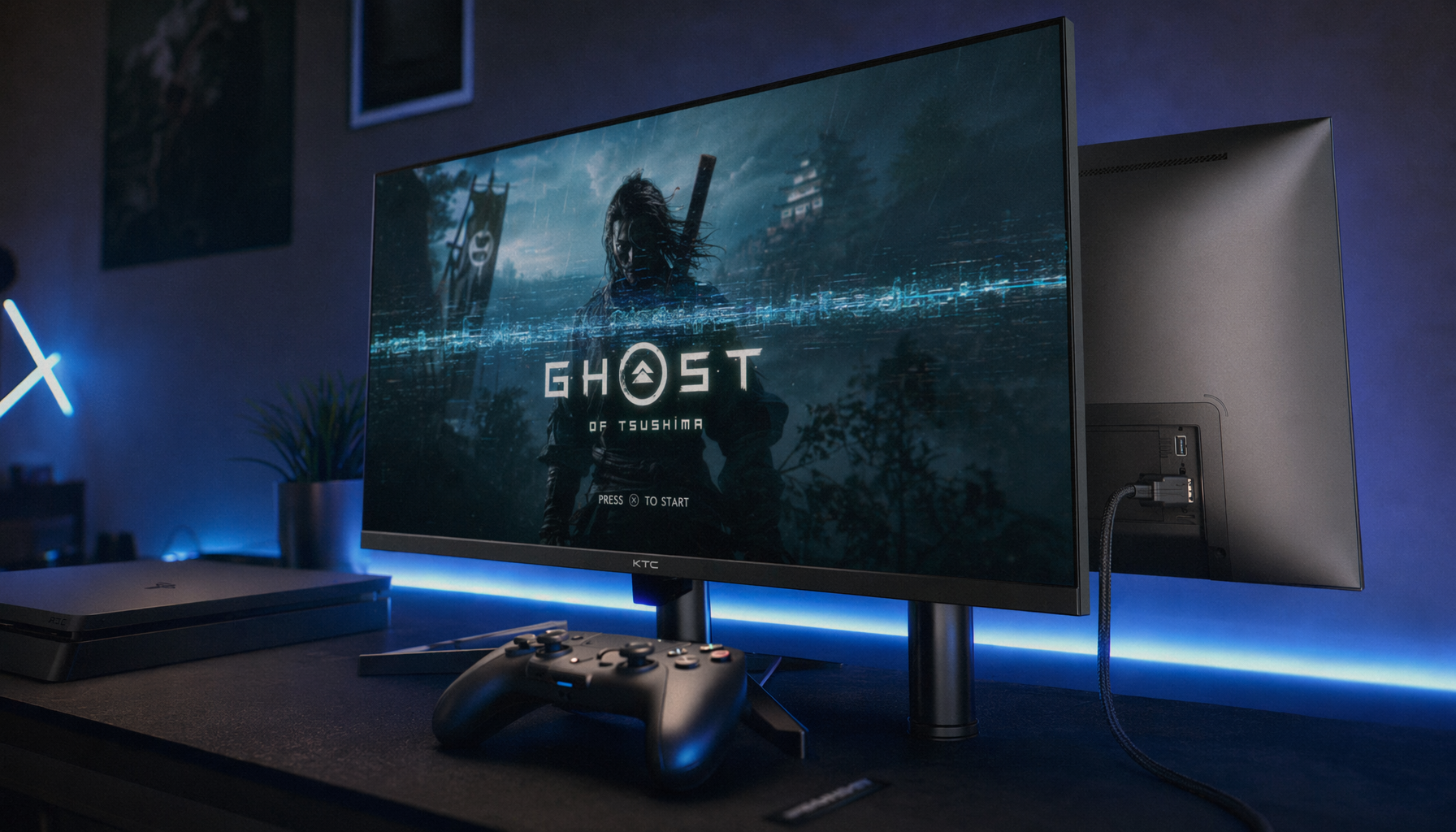

You switch from a 60 Hz menu to a 120 Hz match, the screen blinks for a second, and suddenly your headset or monitor speakers pop, crackle, or fall out of sync. A practical test sequence can often isolate the cause in under 20 minutes by comparing 4K 60 Hz, 1080p 120 Hz, VRR on/off, and one audio output at a time. Here is how to tell whether the problem is your monitor setting, digital display path, console audio format, or external audio gear.

What Actually Changes When Refresh Rate Changes?

A console does more than “draw faster” when it moves from 60 Hz to 120 Hz. The monitor and console may renegotiate resolution, HDR, chroma format, VRR, and audio routing, and those changes can make an existing delay or weak link obvious because 120 Hz changes video timing. At 60 Hz, one frame lasts about 16.7 ms; at 120 Hz, one frame lasts about 8.3 ms, so a small processing hiccup becomes easier to notice.

Diagram comparing 60 Hz and 120 Hz frame timing and the display parameters renegotiated during a refresh rate mode switch

On many gaming monitors, the switch can happen when a game exits a 60 Hz launcher, enters a 120 Hz performance mode, enables VRR, or changes from a cutscene to gameplay. If the audio is traveling through a digital display connection into the monitor, then out through built-in speakers or a 3.5 mm headphone jack, the monitor has to extract audio from the same display stream that is being reconfigured.

Why the Sound Breaks Even Though the Video Looks Fine

Digital display connections can carry video and audio together, but the display and audio devices do not always recover at the same speed after a mode change. A monitor may show the new refresh rate correctly while its audio output briefly pops, mutes, or resyncs.

This is why the same console may sound clean through a wired controller headset but crackle through monitor speakers. The controller headset bypasses monitor audio extraction, while the monitor speakers depend on the display’s digital audio handling, device-capability negotiation, and internal processing.

Side-by-side comparison of wired controller headset audio (stable) versus monitor headphone jack audio (prone to crackle during refresh rate changes)

Why 60 Hz to 120 Hz Is a Common Trigger

A 60 Hz to 120 Hz switch can increase bandwidth demand, change the digital color format, alter HDR behavior, or activate VRR. Console players often notice the issue only after buying a high-refresh gaming monitor because the old 60 Hz display never asked the console to use those more demanding modes.

A real-world parallel appears in an open-source operating system display case where digital display audio worked at 60 Hz, but switching a high-end graphics card system connected to a consumer display to 120 Hz VRR or 100 Hz VRR caused sound output to stop even though the audio device remained detected; returning to a lower refresh rate restored sound in that 60 Hz to 120 Hz setup. That example is not a console test, but it shows the same class of failure: the display mode changes, the digital display audio path becomes unstable, and lowering refresh rate restores audio.

Audio stutter after a refresh-rate change usually comes from one of four areas: display timing, display-connection bandwidth, monitor audio extraction, or an external audio chain. The fix depends on which part changes when the crackle appears.

VRR and Adaptive Synchronization Timing

VRR and adaptive synchronization vary the monitor’s refresh rate to match the frame output instead of forcing every frame into a fixed 60 Hz, 120 Hz, 144 Hz, or 240 Hz cadence. Adaptive synchronization itself is not an audio clock and does not rewrite the game’s soundtrack, but adaptive synchronization can make frame-time spikes, graphics load changes, and display pipeline quirks easier to notice.

For console users, the practical question is simple: does the crackle happen only with VRR enabled? If yes, test the same scene with VRR off, then test again at a fixed 120 Hz mode. If the audio cleans up, the issue may be the monitor’s VRR handling, the console’s VRR mode, or the digital display path under variable timing.

Display Cable, Port, and Bandwidth Limits

A monitor can advertise 120 Hz support while only one display input supports the full feature set you need. On a 4K gaming monitor, 4K 120 Hz with HDR and VRR demands more from the cable and port than 1080p 120 Hz or 4K 60 Hz. If the link is marginal, you may see black screens, sparkles, signal drops, audio pops, or momentary silence when the mode changes.

Use the monitor’s correct high-bandwidth display input, the console’s supplied display cable when available, or a certified high-bandwidth display cable for 4K 120 Hz setups. For portable monitors and ultrawide monitors, also check whether the display input supports the refresh rate you selected; some portable displays accept high refresh only over a modern multi-purpose display connection, while the standard digital display input may be limited.

Premium high-bandwidth HDMI display cable for 4K 120Hz console gaming setups

Monitor Speakers and Headphone Jacks

Monitor speakers and monitor headphone jacks are convenient, but they are not the same as direct console audio. They depend on the monitor receiving digital display audio, decoding or passing it internally, and then outputting it through small speakers or analog conversion.

If your crackle only happens through the monitor but not through a wired controller headset, direct wired headset, or direct soundbar connection, the monitor’s audio extraction path is the likely weak point. This is common enough that a good first test is to remove every external device and use one display cable from console to display with built-in speakers or wired headphones, because a clean baseline helps isolate console AV sync problems.

Soundbars, Receivers, Extractors, and Wireless Audio

External audio gear can add a second timing path. Video may go straight to the gaming monitor while audio goes through a soundbar, receiver, digital audio extractor, audio return channel link, optical adapter, or wireless speaker. Each device can buffer, decode, convert, or resync audio.

This is where fixed delay and progressive drift matter. A fixed delay feels like every gunshot or menu click is always late by the same amount, such as about 80 ms. Progressive drift starts close to synced and gets worse over time; reported cases in display troubleshooting reached roughly 300 ms after about 1.5 minutes, or 1-2 seconds after several minutes.

How to Diagnose the Problem Without Guessing

Start with a repeatable scene. Use the same game, same menu transition, same match intro, or same cutscene every time. If the crackle happens randomly, record the approximate timing: immediately after switching to 120 Hz, every 1-2 minutes, only when VRR activates, or only after the console wakes from sleep.

Build a Clean Baseline First

Connect the console directly to the monitor with one display cable. Turn off the soundbar, receiver, display switch, capture card, wireless audio, and audio extractor. Use the monitor speakers, monitor headphone jack, or a wired controller headset for the first baseline.

Then test in this order: 4K 60 Hz, 1080p 120 Hz, your preferred 120 Hz mode, VRR off, VRR on. This order matters because 4K 60 Hz is usually stable, 1080p 120 Hz tests high refresh with less bandwidth pressure, and the final preferred mode tests the full load.

Check the Monitor’s Actual Input Status

Do not rely only on the console menu. Open the monitor’s on-screen display and check the actual input resolution, refresh rate, HDR state, and VRR status after the game loads. Also check the console’s video output information screen.

Gamer checking console video output settings on a gaming monitor’s OSD to diagnose audio crackle during refresh rate changes

A VRR troubleshooting workflow should compare the same scene with VRR on and off while keeping settings unchanged, because micro-stutter is often a frame-pacing issue rather than an average FPS issue. If the same audio pop appears at the same moment with VRR on and off, look beyond VRR toward the display connection, audio routing, firmware, or the game itself.

Use This Checklist

Set the console to 4K 60 Hz and confirm whether audio is clean.
Switch to 1080p 120 Hz and test the same scene again.
Turn VRR off, then on, without changing other settings.
Change audio output to stereo PCM and retest.
Bypass the monitor audio path with a wired controller headset or direct wired headset.
Try the monitor’s other display input and a certified high-bandwidth display cable.
Update the console, monitor firmware, and any soundbar or receiver firmware.

If the issue disappears at 1080p 120 Hz but returns at 4K 120 Hz with HDR or VRR, suspect display-connection bandwidth, cable quality, or monitor-port limits. If it disappears when you bypass monitor audio, suspect the monitor’s digital audio extraction or headphone output.

Which Audio Path Should You Use?

The most stable path is usually the shortest path that avoids unnecessary conversion. For competitive console gaming on a high-refresh monitor, wired controller audio, a direct wired headset, or direct console-to-audio-device routing often behaves better than monitor speakers or a monitor headphone jack.

That does not mean monitor audio is “bad.” It means monitor audio is more exposed to display-mode changes. If you bought a 27-inch 1440p 120 Hz monitor or a 32-inch 4K 144 Hz monitor mainly for console play, treat the built-in audio output as convenient, not mission-critical.

Audio path	Best use case	Risk during refresh-rate changes	What to test first
Monitor speakers	Casual play, desk setup, no extra gear	Medium	Test 4K 60 Hz vs 120 Hz and stereo PCM
Monitor headphone jack	Simple wired headphones at the desk	Medium to high	Compare against controller headset
Wired controller headset	Low-complexity console audio	Low	Use as the baseline audio test
Direct wired headset connected to console	Competitive play, stable voice chat	Low	Confirm console supports the headset fully
Soundbar via audio return channel	Couch gaming with TV-style setup	Medium to high	Enable low-latency mode and test pass-through
AV receiver or display switch	Multi-device entertainment setup	High	Bypass it, then add it back after baseline
Wireless speaker/headphones	Casual audio where latency is acceptable	High	Avoid for timing-sensitive games

For many setups, stereo PCM is the best diagnostic audio format because it avoids extra decoding steps. If stereo PCM fixes crackle or sync drift, you can later test surround, branded surround formats, or pass-through one by one instead of changing everything at once.

KTC 27-inch 2K 200Hz gaming monitor with built-in speakers in a console gaming desk setup

Display Settings That Often Fix Crackle

Low-latency mode should be enabled on TVs and monitor-like displays that offer it. Low-latency mode usually reduces video processing and may disable sharpening, dynamic contrast, motion smoothing, and other enhancements that delay frames.

On gaming monitors, also disable features that process frames heavily, such as motion blur reduction modes, black frame insertion, aggressive dynamic contrast, noise reduction, and cinematic motion settings. These features may look useful in a menu, but they can complicate timing when the console switches between 60 Hz, 120 Hz, HDR, and VRR.

Refresh-Rate Caps and VRR Ranges

PC-focused advice often recommends capping frame rate slightly below the monitor maximum, such as 141 FPS on 144 Hz, 160-162 FPS on 165 Hz, or 236-237 FPS on 240 Hz, to keep VRR smooth. Consoles usually provide fewer manual cap options, but the principle still helps: choose a stable output mode rather than the most demanding combination your monitor claims to support.

If your console game offers Quality, Performance, 120 FPS, and VRR options, test them separately. A stable 60 Hz Quality mode with clean audio tells you the audio system works. A clean 1080p 120 Hz mode tells you high refresh can work. Crackle only at 4K 120 Hz with HDR and VRR points to the full digital display chain rather than the game audio engine alone.

Edge Cases: Emulators, PC Handhelds, and Monitor Mismatch

Not every refresh-rate problem comes from a console, but related display-timing cases are useful. An emulator issue reported heavy audio stutter in windowed mode when a 70 Hz game ran with sync enabled against a 60 Hz 1080p monitor; a maintainer noted that with sync enabled, the desktop refresh rate should match the game refresh rate, or motion and audio can suffer in that 70 Hz game scenario.

Open-source handhelds and living-room PCs can show similar digital display audio dropouts. One graphics-card report described intermittent digital display audio cutouts about every 1-2 minutes, with users testing workarounds such as higher graphics power profiles and audio-server timing changes in an HDMI audio dropout case. Console owners do not need those system-specific fixes, but the pattern reinforces the main point: display timing, graphics/display power behavior, and digital display audio stability can interact.

FAQ

Q: Can VRR itself cause console audio crackle?

A: VRR does not directly change audio sample rate or delay the soundtrack by itself. However, VRR changes display timing, and that can expose display-connection handshaking issues, monitor firmware quirks, frame-time spikes, or unstable monitor audio output. Test the same scene with VRR off and on while keeping resolution, HDR, and audio format unchanged.

Q: Why does audio work at 60 Hz but crackle at 120 Hz?

A: 120 Hz halves frame time from about 16.7 ms to about 8.3 ms and may also change bandwidth, HDR, chroma, VRR, and display-connection negotiation. If the cable, monitor port, audio extractor, or monitor audio circuit is marginal, the higher-refresh mode can reveal the problem even when 60 Hz works perfectly.

Q: Should I use monitor audio or a headset for console gaming?

A: For the most stable high-refresh setup, use a wired controller headset, supported direct wired headset, or direct audio path that bypasses the monitor. Monitor speakers and headphone jacks are fine for casual play, but they depend on digital display audio extraction and are more likely to react badly when the display switches refresh rate.

Practical Next Steps

Start with the simplest working setup: console to monitor with one display cable, 4K 60 Hz, low-latency mode on, VRR off, and stereo PCM. If audio is clean, move to 1080p 120 Hz, then your preferred 120 Hz mode, then VRR, HDR, and external audio devices one at a time.

If crackle appears only through the monitor’s speakers or headphone jack, bypass monitor audio for serious gaming. If crackle appears only at 4K 120 Hz with HDR or VRR, use the correct high-bandwidth display input, replace the cable, update monitor firmware, and consider running 1440p or 1080p at 120 Hz if your monitor handles that mode more cleanly. The best gaming monitor setup is not just the highest number in the spec sheet; it is the refresh rate, resolution, VRR setting, and audio path that stay stable together.
