Best Monitor for Engineers: End Palette & Toolbar Overlap

For most engineers, the overlap problem usually stops once you move beyond a basic 24-inch 1080p display and into either a 27-inch 1440p monitor, a 32-inch 4K monitor, or a 34-inch ultrawide. The right choice depends less on screen size alone and more on how much usable pixel space remains after tool palettes, side panels, and display scaling.

Ever open a drawing, then watch the properties box, file tree, browser, and meeting window squeeze the actual work into a narrow strip in the middle? Real-world engineering monitor picks keep landing on 27-inch, 32-inch, and 34-inch classes because they let more of the work stay visible at once. You will leave with a clear way to choose between a larger 16:9 screen, an ultrawide, dual monitors, or a portable side display.

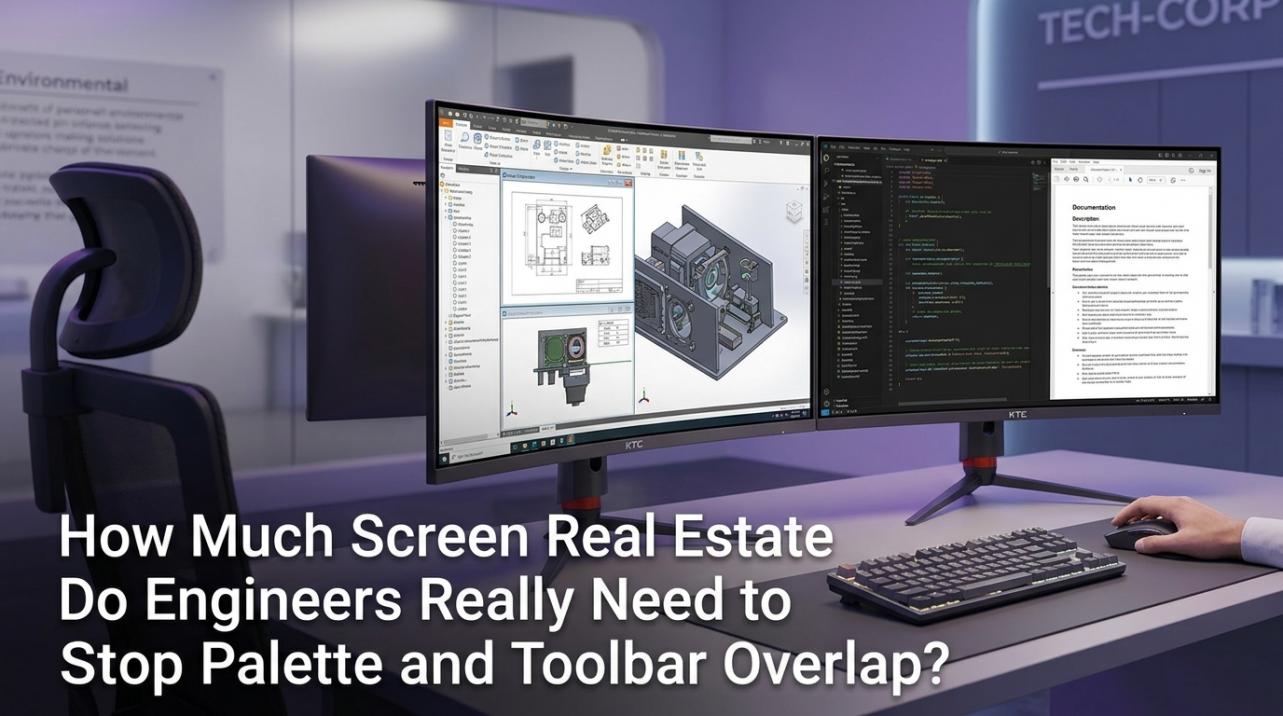

Frustrated engineer coding on large curved monitor, struggling with screen real estate.

Why Engineering Apps Run Out of Room Faster Than Office Apps

General office sizing is only the starting point

For most desks, 24-inch to 27-inch monitors are a reasonable office baseline, but engineering software burns through that space much faster than email, docs, or spreadsheets. Once a model view, layer list, properties panel, and reference window are all open, the center canvas starts shrinking long before the monitor feels physically small.

Curved ultrawide monitor on a desk, showcasing expansive screen real estate.

Engineering-focused monitor guidance treats screen space as a core requirement because engineers often need CAD, spreadsheets, documents, and code visible together. That is also why larger 1080p panels are a weak fit for detailed work: they add panel size without adding enough sharpness or enough effective room for fine lines and dense interfaces.

Width helps first, but height still matters

A 34-inch ultrawide often feels like an immediate relief because it keeps multiple windows in one continuous field of view and removes the center bezel that splits two monitors. In practice, that solves a lot of left-right crowding from toolbars, chat panes, and documentation windows.

A 49-inch super-ultrawide with 3,840 x 1,080 can replace two standard monitors side by side, but it still gives you only 1,080 pixels of vertical room. If your real problem is stacked toolbars, long property sheets, or tall plan sets, extra width alone can still leave the main work area feeling short.

Size, Resolution, and Scaling Decide Usable Workspace

Pixel count changes how much work fits on screen

The jump from 1440p to 4K is not subtle on a spec sheet: 4K packs 8,294,400 pixels, standard 1440p sits around 3,686,400, and 3,440 x 1,440 ultrawide lands at 4,953,600. That is why two monitors with similar physical size can feel completely different once palettes are open; usable workspace comes from both the panel size and the pixel grid behind it.

Scaling can erase some of the gain

Pixel density changes readability: a 32-inch 4K display is about 138 PPI, while a 27-inch 1440p display is about 109 PPI. The sharper panel can fit more information cleanly, but if text and icons become too small and you raise scaling, some of the extra workspace gets handed back to the operating system.

Engineer's multi-monitor workstation with laptop, external display, keyboard, mouse for screen real estate.

Large-format 4K screens change that tradeoff because a 40-inch 4K panel sits near 110 PPI, almost the same as a 27-inch 1440p screen at about 108 PPI. That makes larger 4K monitors attractive for engineers who want more total room without making interface elements feel tiny.

Which Monitor Class Fits Each Engineering Workflow?

27-inch 1440p: the practical minimum for many desks

27-inch 1440p monitors are the practical minimum for many engineers who mainly code, review PDFs, work in spreadsheets, and do light-to-medium CAD. They give noticeably sharper text and more side-by-side room than 1080p at the same size, and they are far easier to run than 4K on a midrange PC.

32-inch 4K: the strongest single-screen answer

32-inch 4K displays are usually the best single-screen answer when overlap happens inside one dense application rather than between separate apps. The extra detail helps with fine drawings, photos, and 4K video, and the larger canvas gives you more freedom to park tool palettes without crushing the center workspace.

34-inch ultrawide: best when the pain is horizontal

34-inch ultrawides are strongest when your problem is mostly horizontal: code beside a browser, a drawing beside specifications, or simulation output beside notes. A good 3,440 x 1,440 ultrawide keeps 1,440 pixels of vertical space, which is a better fit for engineering work than very wide 1,080-tall panels.

Setup	Native resolution	What it usually fixes	Main limitation	Best fit
24-inch 1080p	1,920 x 1,080	Basic office work, light coding	Palettes crowd the center quickly	Secondary or budget screen
27-inch 1440p	2,560 x 1,440	Sharper text and better side-by-side work	Can still feel tight for heavy CAD/BIM	General engineering, mixed work/gaming
32-inch 4K	3,840 x 2,160	Best single-screen room for dense apps	May require scaling and more GPU power	CAD, design review, detail-sensitive work
34-inch ultrawide	3,440 x 1,440	Continuous width for two to three windows	Less height than large 4K panels	Coding, documentation, multitasking
49-inch super-ultrawide	3,840 x 1,080 to 5,120 x 1,440	Replaces two screens without a bezel	Shorter versions still feel vertically cramped	Wide dashboards and timeline-heavy layouts
Dual 27-inch 1440p	2 x 2,560 x 1,440	Full-screen app on each display	More cables, bezel split, more head turning	CAD plus email, PDFs, PLM, or meetings

Ultrawide vs. Dual Monitors for Engineering Work

Where ultrawide wins

Ultrawides have a real quality-of-life edge because they give you one uninterrupted canvas, one set of colors and brightness, and fewer cables on the desk. That matters when you constantly drag windows around and dislike losing a drawing or editor pane behind a center bezel.

Where dual monitors still win

Dual monitors still lead for dedicated fullscreen space. If you want a full drawing on one screen and a full PDF set, browser, PLM window, or meeting on the other, two displays remain the cleaner workflow.

Picture-by-Picture and Picture-in-Picture support makes some ultrawides a useful middle ground because they can behave more like two screens when needed. If you dislike multi-monitor cable clutter but still want stricter window separation, that feature is worth paying for.

If the Same Desk Also Handles Gaming

High refresh is not just a gaming extra

1440p high-refresh monitors hit a sweet spot for mixed-use buyers because they demand much less GPU power than 4K while still giving more room than 1080p. That is why many engineers who game after work land on 27-inch 1440p or 34-inch ultrawide gaming monitors at 120Hz to 165Hz instead of chasing expensive 4K high-refresh setups.

4K still has a place for detail-first work

4K remains better for detail-sensitive productivity when you inspect fine linework, photos, or native 4K video, but smooth 165Hz motion feels dramatically better than 60Hz in games. If your workstation doubles as a gaming setup, the real question is whether after-hours use is mostly competitive play, immersive single-player, or just occasional testing.

A 90% productivity and 10% gaming workload often argues against forcing 4K onto an older GPU, especially if a full system rebuild is not coming soon. In that situation, a strong 1440p gaming monitor with a good stand is often a safer buy than a 4K panel that creates both scaling friction and performance pressure.

Features That Matter After Size and Resolution

One-cable docking can improve the whole desk

USB-C power and docking matter more than they seem because one cable can handle video, data, and laptop charging at the same time. For engineers moving between office and home setups, that reduces desk clutter and makes a larger monitor or ultrawide easier to use as a true workstation hub.

Portable monitors help, but only as support screens

A portable monitor works best as a pressure valve, not as the main fix. It is useful for chat, email, terminal output, or a parts list when you travel or hot-desk, but it will not solve palette overlap if the primary screen still lacks enough height or enough resolution.

Adjustable stands, VESA support, USB ports, and blue-light features are worth paying for because extra screen space only helps if you can position the panel correctly and keep cables under control. On a deep desk, even a good panel loses value if it sits too low, too high, or too far back to read comfortably.

FAQ

Q: Is 27 inches enough for CAD and coding?

A: 27-inch 1440p is a practical middle ground for many engineering tasks, especially code, spreadsheets, and side-by-side documents. If you keep multiple palettes open inside one CAD or BIM window all day, 32-inch 4K usually gives you more breathing room.

Q: Is an ultrawide better than dual monitors for engineers?

A: Ultrawide screens reduce bezel breaks and head-turning, while dual monitors give each app its own full screen. Choose ultrawide if you want one continuous canvas; choose dual if you regularly pin one application full-screen beside another.

Q: Can a portable monitor replace buying a bigger main display?

A: A portable monitor helps when the problem is secondary clutter, like moving chat or email off the main screen. If the actual model, drawing, or code window is cramped, you still need more primary resolution, more vertical pixels, or both.

Practical Next Steps

27-inch 1440p, 32-inch 4K, and 34-inch ultrawide monitors cover most engineering buying decisions better than chasing sheer size alone. The right pick comes from matching your software layout to the kind of space you are missing: width, height, or a second full-screen zone.

Audit your current pain point for one day: are palettes stealing width, height, or a second full-screen workspace?
Choose 27-inch 1440p if you want the best entry point for coding, spreadsheets, and moderate engineering workloads.
Choose 32-inch 4K if one dense application dominates your day and you want the strongest single-screen layout.
Choose 34-inch ultrawide if you mostly run two to three windows side by side and want a clean, bezel-free desk.
Choose dual monitors if you regularly keep one app full-screen while another stays open for reference or communication.
Choose a high-refresh 1440p gaming monitor for mixed work and play unless your GPU and budget comfortably support 4K.
Use a portable monitor only as a secondary overflow screen, not as a substitute for enough primary workspace.
