Input lag often rises in PiP or PbP because the monitor must scale, synchronize, and combine multiple video signals before displaying the final image. For gaming, that extra processing can make controls feel noticeably less immediate.
Does your aim feel sharp in full-screen mode, then slightly rubbery when you turn on a second laptop feed or console window? A simple before-and-after test with Game Mode, native resolution, and PiP/PbP disabled can quickly reveal whether the monitor’s multi-input processing is the source of the delay. This article explains what happens inside the display, when the tradeoff is worth it, and how to set up your screen for the lowest practical lag.
What PiP and PbP Actually Do

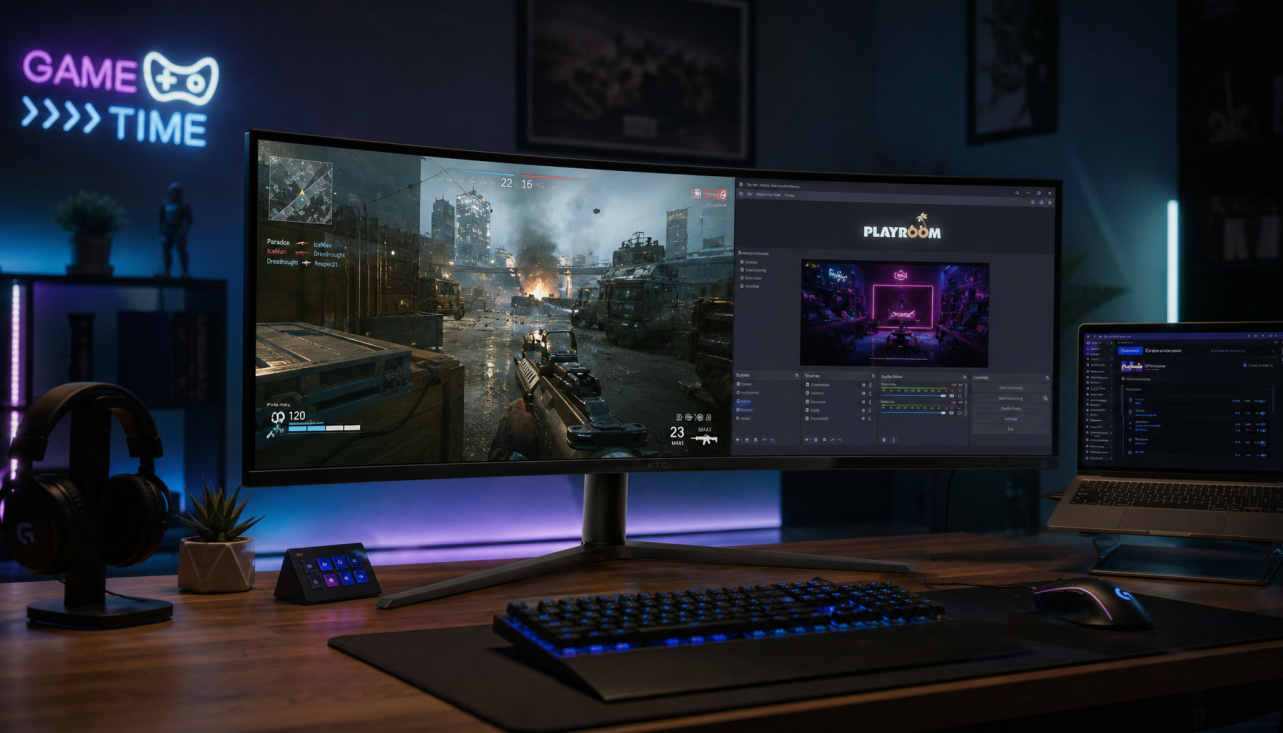

Picture-in-Picture, or PiP, shows one main source across most of the screen while a second source appears as a smaller inset, usually in a corner. A Picture-in-Picture monitor is built for this kind of two-source multitasking, such as keeping a video call, walkthrough, camera feed, or streaming device visible while the main input stays usable.
Picture-by-Picture, or PbP, divides the panel into separate regions so multiple sources sit side by side. Some monitor makers describe multiple signal sources as the core use case for predefined PbP layouts, which is why the feature is popular on 34-inch, 38-inch, and 43-inch productivity displays.
The key point is that PiP and PbP are not just window-management tricks. When the sources come from different physical devices, the monitor has to ingest separate HDMI, DisplayPort, or USB-C signals and build one final image. That is useful for a desk with a gaming PC, work laptop, and mini PC, but it gives the display more work to do before pixels light up.
Why Input Lag Goes Up
Input lag is the delay between your action and the resulting image appearing on screen. Technical guidance on gaming displays distinguishes response time, which describes how fast pixels change state, from input lag, which is about the control-to-screen pipeline.
PiP and PbP increase lag because they usually activate extra processing stages. The monitor may need to scale each source into a smaller region, preserve or alter aspect ratio, synchronize mismatched refresh rates, combine the sources into one output frame, and sometimes disable the fastest gaming path. Even if each step adds only a few milliseconds, the total can become visible in fast shooters, rhythm games, fighting games, or any workflow where cursor feedback needs to feel immediate.
A simple example makes the tradeoff clear. At 144 Hz, each frame lasts about 6.9 ms; at 30 FPS, each frame lasts about 33.3 ms. KTC’s latency troubleshooting notes emphasize that frame timing strongly affects responsiveness, so a monitor that drops refresh rate or buffers frames in a multi-view mode can feel slower even before you change anything in the game.
The Hidden Cost of Scaling and Layouts
Scaling is one of the most common reasons PiP and PbP feel slower. If a 4K signal is squeezed into half of an ultrawide panel, or a 16:9 console feed is placed inside a smaller inset, the monitor has to resize the image. That resizing may be clean and stable, but it is still processing.
Aspect ratio handling matters too. Some ultrawide PbP setups can create aspect-ratio distortion when standard 16:9 signals are stretched or boxed into awkward regions. Professional multi-input displays may reduce this with more flexible layouts and hardware-based processing, but budget or gaming-first monitors may prioritize convenience over low latency in these modes.
This is why two monitors with the same refresh rate can behave differently. One may route PbP through a relatively lean hardware path, while another may apply scaling, image enhancement, color processing, and synchronization before display. The spec sheet may advertise “1 ms” response time, yet that number does not describe the full PiP/PbP input lag path.
Why Game Mode May Not Save You
Game Mode usually reduces input lag by bypassing image processing. Support documentation for TVs and monitors explains that Game Mode can reduce delay by limiting extra processing, which is why it is one of the first settings to check on displays used for gaming.
The catch is that PiP or PbP can override or limit those low-latency shortcuts. Some displays disable certain gaming features when multiple inputs are active. Others keep the Game Mode label visible but still add scaling or synchronization behind the scenes. This is especially likely when one input is running at 144 Hz and the other is at 60 Hz, or when HDR, variable refresh rate, high color depth, or non-native resolution enters the mix.
For a practical test, use the same game scene in full-screen single-input mode, then repeat it with PiP or PbP enabled and the second source connected. If the mouse feels heavier only in multi-view mode, the monitor’s processing path is probably the cause. If it feels bad in both modes, look next at FPS caps, V-Sync, GPU load, mouse polling, cable bandwidth, and OS refresh-rate settings.
PiP vs. PbP: Which Adds More Lag?
There is no universal winner because implementation matters more than the label. PiP can be lighter when the secondary window is small and passive, but it may still require overlay composition. PbP can be cleaner on professional displays because each source receives a defined region, but it can also force resolution changes and refresh-rate compromises.
Mode |
Best Use |
Latency Risk |
Practical Example |
PiP |
Main task plus a small reference feed |
Overlay scaling and composition |
Playing on a PC while watching a walkthrough in a corner |
PbP |
Equal visibility across two or more systems |
Split-screen scaling, refresh sync, reduced gaming features |
Work laptop on one half, desktop PC on the other |
Single input |
Competitive gaming or latency-critical editing |
Lowest, assuming Game Mode and native refresh are active |
Full-screen shooter at 144 Hz or higher |
For office productivity, PiP and PbP are often worth the tradeoff. Buying advice for business monitors notes that ultrawide shoppers who need simultaneous inputs should look specifically for PbP or PiP, because the feature is not guaranteed just because the screen is large. For competitive play, however, single-input full-screen mode remains the cleaner performance choice.
How to Reduce Lag Without Giving Up Multi-View
Start with the monitor’s native resolution and refresh rate. If your 34-inch ultrawide is being split into two virtual workspaces, make sure each source is sending a resolution the monitor handles cleanly. Documentation for specific ultrawide models shows that picture-by-picture behavior can be model-specific, so the manual matters when you are tuning multi-input layouts.
Next, disable image enhancements while testing. Dynamic contrast, noise reduction, motion smoothing, super-resolution sharpening, HDR tone mapping, and heavy color modes can add processing. Use the lowest-latency preset available, then add features back one at a time only if the visual gain is worth the control penalty.
Match refresh rates where possible. A 144 Hz gaming input paired with a 60 Hz laptop feed may force the monitor into a more complex timing path. If you only need the second input for chat, a static dashboard, or a video call, consider moving it to a separate portable screen instead of forcing the gaming monitor into PiP.
Use the right cable and port. HDMI, DisplayPort, USB-C, and similar ports can look simple from the outside, but bandwidth limits can quietly reduce refresh rate, color depth, or resolution. For high-refresh gaming with a second source, DisplayPort for the gaming PC and HDMI or USB-C for the secondary device is often more predictable than pushing both sources through constrained adapters.
When PiP or PbP Is Worth the Tradeoff
PiP and PbP are excellent when awareness matters more than twitch response. A creator can monitor a camera feed while editing, a finance user can keep a market dashboard visible beside a spreadsheet, and a remote worker can run a laptop and desktop without adding another full-size display. For these workflows, a few added milliseconds usually matter less than reducing desk clutter and context switching.
PbP is especially strong for office immersion on large displays. A 34-inch ultrawide can replace a dual-monitor setup while keeping the desk cleaner, and a 43-inch class display can show several systems at once. Larger PbP monitors with multiple layouts show why screen size and resolution matter: each source gets only part of the panel, so a low-resolution display can make text and UI controls feel cramped.
For esports, turn PiP/PbP off. Use a single source, native resolution, the highest stable refresh rate, VRR where appropriate, and the monitor’s fastest usable overdrive setting. For hybrid play and work, create two monitor presets if your display supports them: one competition setup with latency-heavy features disabled, and one command-center setup with PiP or PbP enabled.
FAQ
Does PiP always increase input lag?
It can, but not always by enough to notice. A well-designed monitor with hardware-based processing may keep delay modest, while a budget model may add obvious lag through scaling and synchronization.
Is PbP bad for gaming?
PbP is not ideal for competitive gaming because it can reduce refresh-rate flexibility and activate extra processing. It is useful for casual gaming with a guide, chat window, or second system visible, but full-screen single-input mode is better when reaction time matters.
Is input lag the same as response time?
No. Input lag is the delay from action to visible result, while response time is how quickly pixels change color. A monitor can advertise a fast pixel response and still feel delayed if its signal processing path is slow.
Final Word
PiP and PbP make a monitor more versatile, but versatility has a processing cost. Use them for command-center productivity, source monitoring, and desk efficiency; switch them off when every frame and every click needs to land with maximum precision.
