How Manufacturers Are Designing Monitors for Easier Repair and Component Replacement

Repair-friendly monitors use modular boards, cleaner disassembly, clearer part labeling, and safer replacement paths. These design choices make it more likely that a failed power board, cable, or capacitor can be replaced without scrapping the entire display.

Why Repairability Has Become a Serious Monitor Design Goal

A surprising share of monitor failures come internal faults rather than total screen destruction, which changes how manufacturers approach product design. If a display fails because of a power supply issue, loose connector, backlight problem, or bad capacitor, the repair is much more practical when the unit opens cleanly and the faulty part can be replaced without disturbing the entire assembly.

On the bench, the difference is obvious. A repair-hostile monitor hides clips, buries boards under layers of shielding, and uses poorly marked parts. A repair-friendly monitor gives clean access to the most likely failure points first, especially the power board, scaler board, backlight connections, and control wiring. That does not make every model easy to fix, but it does shorten diagnosis and reduce the risk of damaging something else during the repair.

Repairability also matters because panel replacement is usually the least attractive option. Screen damage is often uneconomical to fix, while board-level or connector-level faults can still make financial sense. For gaming setups, office fleets, and portable smart displays, that distinction matters because a high-refresh or color-accurate display may still be fully useful if one replaceable subassembly fails.

What Manufacturers Are Changing Inside the Monitor

Easier Opening Without Collateral Damage

The most basic improvement is physical access. Model-specific service guidance reduces the risk of damage, so manufacturers that publish better teardown guidance or follow predictable internal layouts are already ahead. In practice, easier repair starts with a rear shell that separates without hidden, break-prone tabs and with screws that are visible, consistent, and not mixed across too many lengths.

That matters because even a simple fix can turn difficult if front-button cables or short ribbon cables are stretched during disassembly. Good design leaves enough slack, uses obvious connector routing, and avoids trapping one board behind another for no reason. This is not glamorous engineering, but it is exactly what turns a two-hour repair into a 30-minute board swap.

Common Failure Points as Replaceable Modules

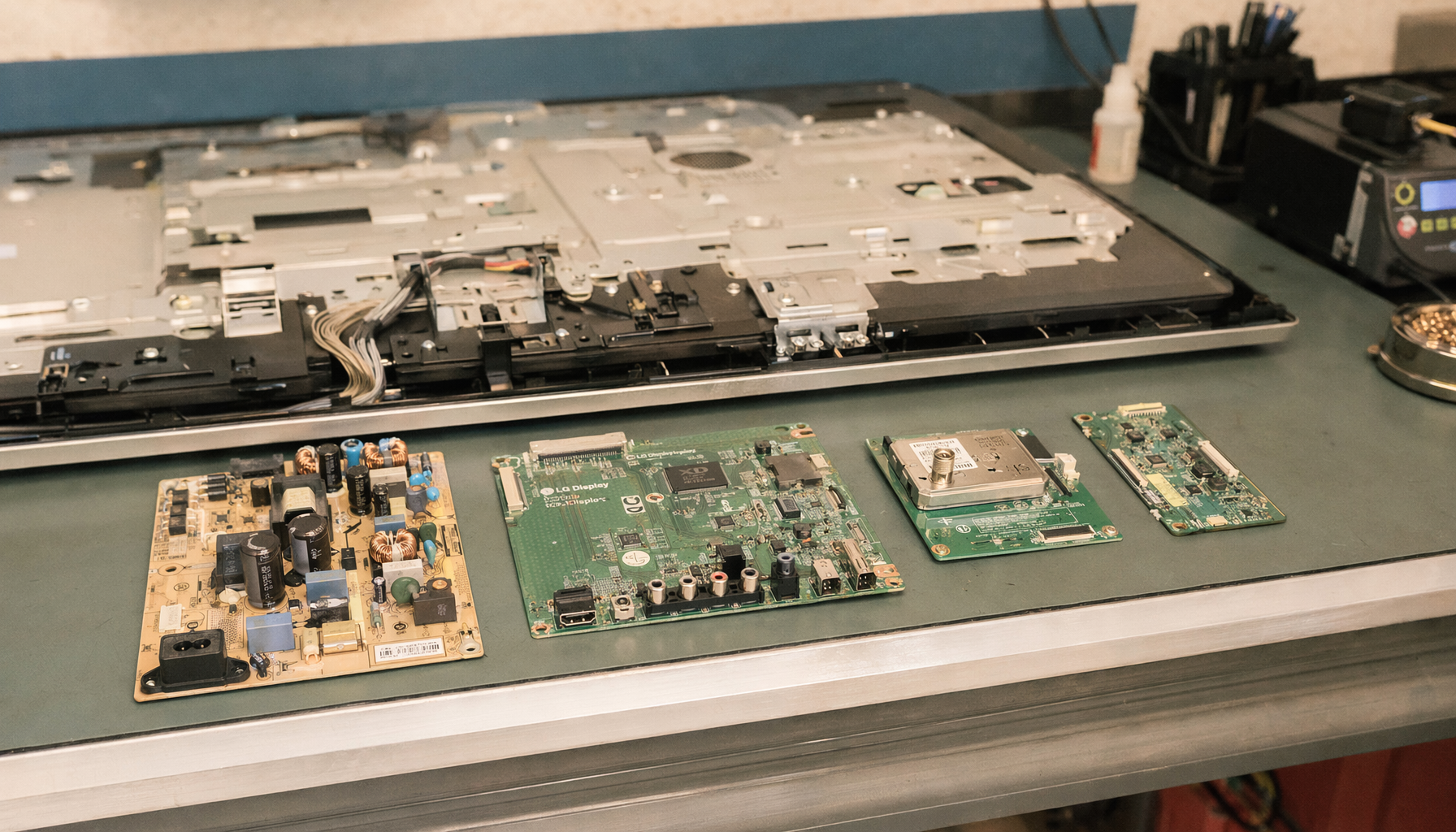

A more meaningful shift is modularity. OEM repair guidance shows that power boards, backlight assemblies, scalers, TCONs, and main logic boards are increasingly treated as distinct serviceable units when the product architecture allows it. That is the core of easier component replacement: isolating likely failure points so a technician does not have to replace the entire monitor when only one subsystem is bad.

This is where repairable design becomes practical design. A modular monitor can let a shop replace a single power board after a surge event or a logic board after a no-signal fault while keeping the original panel, housing, and stand. For office environments, that means less downtime. For gaming users, it can preserve a display whose refresh behavior, motion handling, and ergonomics still fit the setup.

Better Part Identification and Traceability

Electronic component identification depends on markings and physical form, so manufacturers that print clear part numbers, revision labels, voltage ratings, and polarity marks make replacement dramatically safer. This is especially important on capacitors, connector boards, and small daughterboards where a visually similar substitute may still be electrically wrong.

The best monitor internals do not force guesswork. Clear silkscreen labels, visible board revision codes, readable capacitor values, and obvious connector orientation all reduce the odds of installing the wrong part. That is not a small detail. One mismatched board revision can leave you with image artifacts, no backlight, or a monitor that powers up but never syncs correctly.

How Component Replacement Is Being Designed to Work

Board Swaps Over Component-Level Surgery

Bad capacitors can still be repaired cheaply by replacing the failed parts, and that remains a real option for older monitors or technically confident repair shops. But many modern manufacturers are moving toward board-level replacement as the safer mainstream path. It is faster, easier to standardize, and less dependent on soldering skill.

That does not mean component-level repair disappears. It simply becomes the deeper service tier. A monitor with a bulging capacitor may be saved with inexpensive parts, while the same symptom in a sealed, densely packed display may be handled by replacing the entire power board. From a design perspective, manufacturers favor the latter because it scales better across service networks and reduces the chance of heat damage or lifted pads during repair.

More Systematic Evaluation of Substitutes

Choosing replacement components starts with the non-negotiable specs, and that principle is shaping service-friendly design. The easier a manufacturer makes it to verify package, footprint, voltage, current, and connector fit, the easier it is to source a valid replacement instead of gambling on a lookalike part.

This is where repair design intersects with supply-chain design. Component procurement depends on quality, availability, application fit, and warranty support. A repairable monitor is not just one that opens easily. It is one whose replacement boards and components can still be identified, sourced, and trusted months or years later.

Diagnostics That Support Faster Repairs

Visual inspection is still the fastest first pass, but easier repair also depends on how quickly the fault can be isolated. Monitors designed with accessible test points, separated power stages, and distinct cable runs make it easier to tell whether the failure is in the panel, the board, or the connection between them.

That distinction saves money. A quick external-display test is common in laptop repair, where a working outside screen suggests the built-in display is the likely fault; the same diagnostic mindset helps with monitors, especially when symptoms such as flicker, dimness, or distorted output could come from more than one cause. When manufacturers support clean symptom isolation, technicians replace fewer good parts by mistake.

What This Looks Like in Practice

The tradeoff is straightforward. The more a monitor is optimized for ultra-thin construction, adhesive-heavy assembly, and tightly stacked internals, the less friendly it becomes for field repair. The more it is built around modular boards, screw-based access, and clearly identifiable parts, the easier it is to keep in service.

How to Judge a Monitor’s Repairability Before You Buy

Exact model matching, board revision matching, and connector layout matter. A buyer should not ask only whether a manufacturer sells spare parts. The better question is whether the specific model has traceable internals and predictable replacement paths.

For a gaming monitor, that means checking whether the likely service parts are board-level rather than panel-only and whether the display can be tested under real refresh-rate and brightness conditions after repair. For an office display, the practical question is whether a failed unit can be turned around quickly by swapping a board instead of waiting for full replacement. For a portable smart screen, connector durability and cable access matter more because repeated movement increases wear at the edges and hinges.

It also helps to be realistic about what should be repaired. Panel cracks, black splotches, and severe screen damage are usually poor candidates, while intermittent power, dim backlight behavior, and startup instability are much better ones. If you are evaluating a used display or planning fleet purchases, that distinction will save more money than almost any spec-sheet feature.

The Direction Is Clear

Manufacturers are making monitors easier to repair when they separate failure-prone systems into modules, make parts easier to identify, and reduce disassembly risk. The most future-proof display is not just immersive when it is new; it is the one that can survive a bad board, loose connector, or tired capacitor without forcing you to replace the whole screen.
