LCD panels do not generate red, green, and blue light directly. They start with a white backlight and use liquid crystal shutters plus RGB color filters to control how much of each color reaches your eyes from every pixel.
If you have ever wondered why a monitor can make white spreadsheets look clean, neon game worlds look vivid, and skin tones still look believable, this is the mechanism doing the heavy lifting. Understanding it helps explain brightness loss, color accuracy, text clarity, and why two screens with the same resolution can feel very different.
The Core Mechanism Inside an LCD Pixel
A modern LCD is a light-control system, not a self-emissive panel. It begins with a white backlight, then each pixel is split into three smaller areas filtered as red, green, and blue, with the liquid crystal layer acting as a voltage-controlled gate that decides how much light passes through each one non-emissive display technology. When the red, green, and blue subpixels are all driven strongly, you see a bright near-white pixel. When they are dimmed in different proportions, you see everything from pale gray to saturated teal.
The physical color does not come from the liquid crystal itself. The crystal’s job is to twist or untwist light between polarizers so transmission changes with voltage, while the color filter layer decides which slice of that white light survives the trip light bending between polarizing filters. In practice, every subpixel is a tiny controlled window with a dyed or pigmented filter fixed above it.
What the Color Filter Layer Contains

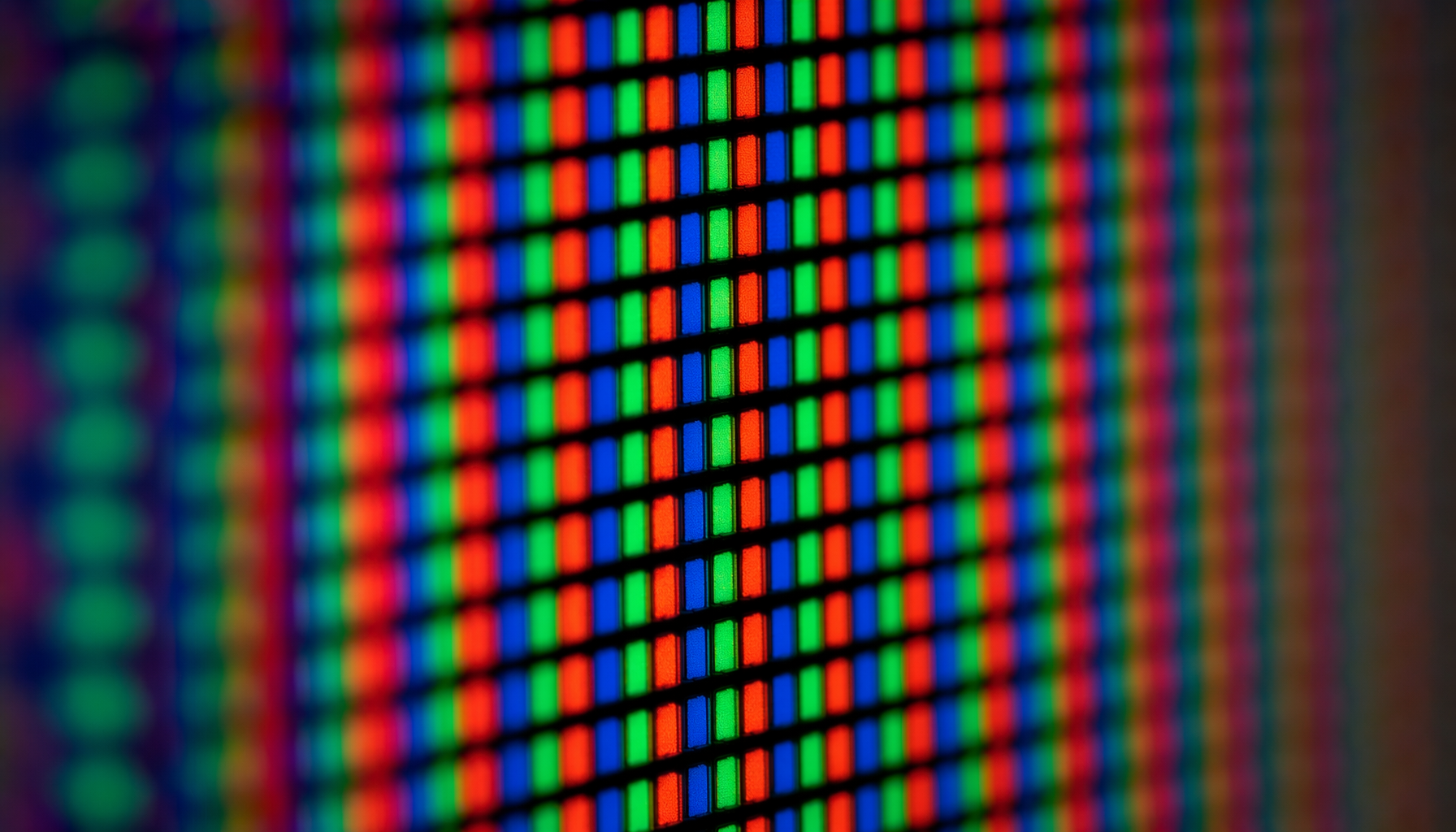

The color filter layer is more than three simple patches of red, green, and blue. In mainstream TFT-LCD construction, manufacturers build the filter structure on glass, add a black matrix between subpixels, and place a transparent conductive layer such as ITO over the stack so the panel can operate correctly passive optical components fabricated on glass. Color quality depends not only on the tint of each filter, but also on how cleanly each subpixel is isolated from its neighbors.
The black matrix is one of the least visible but most important parts. It hides transistor lines, blocks light leakage, reduces unwanted color mixing, and helps contrast hold together in dark scenes. On a desktop display, this is part of why a black interface can look tighter and less washed out than it would if stray light were bleeding into adjacent subpixels.
A simple way to picture one 4K panel is this: about 8 million pixels means roughly 24 million subpixels, each with its own filter behavior and light-control path. That scale is why tiny manufacturing tolerances matter. If the black matrix is too wide, brightness drops because less light gets through. If it is too narrow or poorly aligned, light leakage and contamination increase. The best LCD panels balance transmission, contrast, and color purity rather than maximizing only one of them.
Why RGB Works Well, and Where It Falls Short
Most LCDs use RGB because the structure is efficient, proven, and compatible with how display systems render images and text three subpixels per pixel. On a standard RGB-stripe monitor, software can place edges at subpixel precision, which is one reason text often looks cleaner than you would expect from raw pixel count alone subpixel rendering.
Color filters, however, are never free. Every time white backlight passes through a red, green, or blue filter, a large share of the original light is rejected. This is the central LCD tradeoff: filters create color, but they also waste brightness. The Information Display archive notes that thinning the color-filter layer can raise transmittance and lower power, yet it can also weaken spectral filtering and shrink color gamut. If you have compared a bright office monitor with a wide-gamut creative display, you have likely seen this tradeoff in action. The brighter screen may stand up better in daylight, while the wider-gamut screen may look richer but require more careful backlight and filter design.
Backlight quality is the other half of the equation. A very selective red filter cannot produce strong deep red if the backlight barely emits useful deep-red energy to begin with. That is why premium LCDs often stand out not because the RGB idea is different, but because the filter passbands and the backlight spectrum are better matched.
How Manufacturers Build the RGB Subpixel Pattern
The filter pattern is usually created on glass with photolithographic processes, using separate patterned layers for red, green, and blue materials plus the black matrix and related structures multiple patterned layers. In production, the goal is to hold line widths tightly, maintain thermal and chemical stability, and avoid surface defects that would disrupt alignment or light transmission.
This is also where panel resolution gets expensive. As subpixels shrink, the black matrix must stay narrow enough to preserve aperture ratio while still wide enough to hide circuitry and prevent leakage. The same source describes leading designs pushing black-matrix widths to well under 0.001 in. For buyers, the practical takeaway is simple: higher-resolution LCDs are not just “more pixels.” They demand finer filter geometry, stricter alignment, and better process control.
Why Some Panels Use RGBW or Other Layouts
Not every display sticks to a pure RGB stripe. Some add a white subpixel, some share subpixels in PenTile-style layouts, and some experiment with extra primaries to improve specific performance targets. The logic is straightforward: once you understand that color filters cost light, adding a white path can recover brightness or reduce power.
The tradeoff is fine detail. Extra-white layouts can help peak luminance and efficiency, but very small color details and certain text patterns may lose some independence compared with a clean RGB stripe. That is why an office-focused user may prefer a classic RGB LCD, while a brightness-first portable display or TV-oriented design may accept a more complex layout. Resolution alone does not tell the full story; subpixel geometry still affects real-world clarity.
What This Means in Real Use
On a gaming monitor, strong color filters paired with a capable backlight can improve perceived richness and separation in bright HUD elements, foliage, and skin tones. On an office display, the same filter system has to preserve white uniformity and text sharpness for hours at a time. On a portable smart screen, efficiency matters more because every bit of filtered-away light also costs battery life or thermal headroom.
A practical example is a 27-inch 4K IPS monitor versus a lower-resolution portable panel. The 4K screen packs subpixels densely enough that the RGB structure is hard to notice at a normal desk distance, so text looks stable and refined. A lower-density screen may still look good for video, but subpixel behavior and filter limits become easier to spot in thin fonts, colored edges, and high-contrast interface elements.
Comfort matters too. If a display feels too intense even after lowering brightness, uniform RGB reductions can sometimes make the image easier to tolerate without shifting neutral balance as much as uneven channel changes uniform RGB reduction preserved neutral balance in one forum report. That is anecdotal rather than lab-grade calibration advice, but it matches a common real-world pattern: comfort tuning and color-accurate tuning are not always the same thing.
Where Display Tech May Go Next
The classic RGB-subpixel LCD model is still dominant because it is mature, scalable, and reliable, but newer display research keeps trying to reduce the space and efficiency penalty of separate subpixels. One path is vertically stacked OLED structures that integrate red, green, and blue emission more efficiently for ultrahigh-density applications stacked three-terminal OLED pixels for ultrahigh-density displays. Another path is the idea of a single color-tunable emitter replacing three distinct subpixels, which some microLED developers are now pursuing single polychromatic LED per pixel. A similar claim appears in a single-diode concept from another vendor, though it remains vendor-reported and should be treated cautiously until manufacturing scale is proven.
For today’s LCD buyer, though, the practical answer has not changed. Better color comes from better filters, better backlight matching, tighter subpixel geometry, and smarter tradeoffs among brightness, gamut, efficiency, and clarity.
RGB subpixels in LCDs are created by filtering white backlight through precisely patterned red, green, and blue regions, then modulating each one with liquid crystals. Once you understand that, monitor specs stop looking abstract, and it becomes much easier to choose the screen that delivers the kind of immersion and reliability you actually use every day.
