Calibrating a KTC Mini-LED monitor transforms it from a capable display into a reliable tool for professional design, photography, and video editing. For creators working in 2026, the key is moving beyond factory presets to a custom User mode paired with targeted local dimming settings. This approach delivers consistent D65 white point, stable gamma, and controlled contrast while respecting the hardware's strengths and limitations.
Prerequisites: Defining Your 2026 Calibration Goals
Professional creative workflows demand predictable color reproduction across screens, client reviews, and print. Industry standards typically target a D65 white point around 6500K and a Gamma 2.2 curve. These settings ensure web graphics and photographs appear consistent whether viewed on calibrated monitors or printed on paper, as outlined in established color management guidelines (ISO color management standards).
Factory presets labeled "Cool," "Vivid," or even many sRGB modes often push color temperature above 7000K or apply aggressive saturation. The result is mismatched skin tones, inaccurate shadows, and prints that look nothing like the screen. For budget-conscious professionals upgrading to premium hardware, the M27 series—particularly the M27P6 with its 4K resolution and 1152 local dimming zones—offers strong native performance once properly configured. Check your room lighting first: a 100–150 nit target works for most office environments, while brighter spaces may need 200 nits.
The OSD Foundation: Unlocking Your Monitor's Potential
Most users wonder why they cannot simply select the sRGB preset and begin working. The answer lies in locked controls. On KTC Mini-LED models, the dedicated sRGB mode delivers solid out-of-box accuracy, often with average Delta E below 2 according to independent tests, yet it prevents manual adjustment of RGB gains needed for a true 6500K white point (KTC M27P6 review).
Switch to User mode immediately. This unlocks full control over brightness, contrast, color temperature, and RGB gains. Begin with the Standard color temperature preset as your baseline, then adjust the gains while measuring with a hardware colorimeter. For the M27P6 or similar models, setting gains near 48–52 for red, green, and blue often lands close to D65 before software profiling. Keep brightness at 120–160 nits for SDR creative work to avoid eye strain during long sessions. These OSD changes form the foundation; without them, downstream calibration cannot correct the underlying white-point bias (KTC M27P20 Pro review).
The Local Dimming Dilemma: When to Enable FALD for Color Work
Local dimming on Mini-LED panels dramatically improves contrast, yet it introduces variables that matter deeply in color-critical work. The backlight algorithm can create halos around bright UI elements or subtly shift perceived gamma, making shadow detail harder to judge accurately.
For pure SDR color grading or photo retouching, disable local dimming entirely. This delivers the most stable gamma curve and eliminates blooming that could mask subtle tonal transitions. When mastering or reviewing HDR content, enable High or Balanced mode to access the panel's peak luminance—often 1000–1400 nits on the M27P6—and deeper blacks required by the format. The VA-panel variants like the M27T6 offer higher native contrast (around 3000:1), making dimming-off SDR work particularly viable compared with IPS equivalents.
The 2026 firmware introduces a Balanced mode that significantly reduces the pulsing or flickering some users notice during document scrolling or dark-mode UI work. Many creators adopt this as their daily default for mixed workflows. Always perform a final verification pass with dimming off to catch any shadow crushing the algorithm might conceal. The chart below visualizes these typical trade-offs across creative tasks.
Creative Compromise: Gamma Stability vs Contrast by Dimming Mode
How different local dimming settings affect accuracy and dynamic range for typical creative tasks. Balanced mode often serves as the practical middle ground for daily professional use.
Show Task Comparison Table
| Task | Off (Stability) | Balanced | High (Contrast) |
|---|---|---|---|
| SDR Grading | High | Medium-High | Medium |
| Photo Editing | High | High | Medium |
| HDR Mastering | Low | Medium | High |
| Client Review | Medium | High | High |
| Print Matching | High | Medium-High | Low |
Step-by-Step Calibration: From Hardware Measurement to ICC Profiles

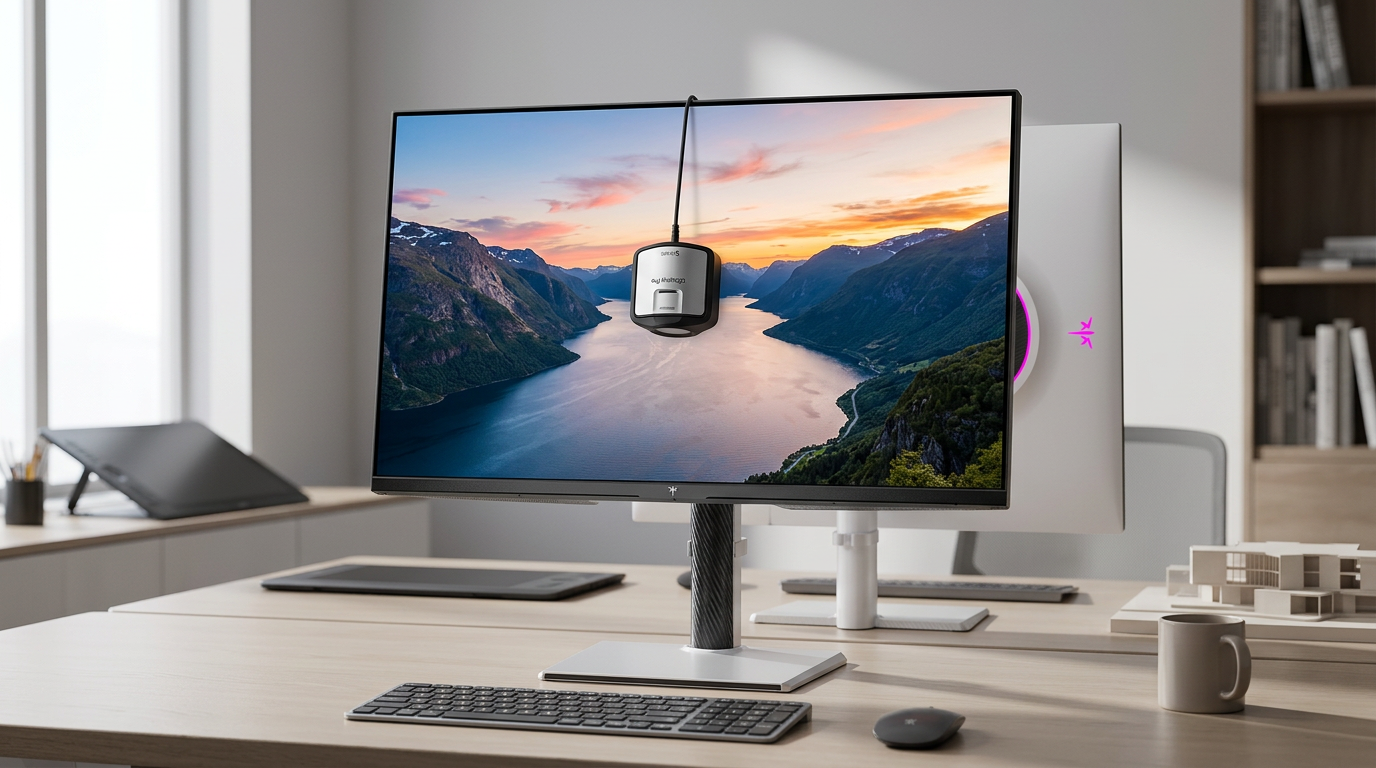

Begin with the monitor warmed up for at least 30 minutes in User mode at your target brightness. Connect a colorimeter such as a Calibrite or Datacolor model and use software like DisplayCAL or the manufacturer's tool. Measure and adjust RGB gains until the white point stabilizes near 6500K. Create an ICC profile that clamps the wide native gamut to sRGB or DCI-P3 depending on your primary deliverables.
For HDR workflows on the M27P6, run the official Windows HDR Calibration tool afterward. This correctly maps the monitor's 1000 or 1400 nit peak so that tone mapping behaves predictably and highlights do not clip prematurely (VESA DisplayHDR standards). Set local dimming to Balanced during most calibration steps; it balances the improved black levels against minimal luminance shifts. After profiling, apply the ICC at the OS level and verify that non-color-managed applications do not appear oversaturated by enabling GPU-level sRGB clamping when necessary.
Verification and Troubleshooting: Ensuring Consistent Output
Success is not measured by numbers alone. Load known test images: a neutral grayscale gradient should show smooth transitions without banding, skin tones should look natural under different lighting, and shadow details in dark scenes must remain visible without crushing. Aim for average Delta E below 2 across the screen; values under 1 in the center are common on these panels after calibration.
Common issues include pulsing backgrounds when scrolling in Balanced mode—switch temporarily to Off or adjust the dimming strength in the OSD. Elevated blacks or inaccurate shadows often trace back to an overly aggressive High dimming setting during SDR work. The "toggle tax"—manually changing modes between projects—can be reduced by creating separate Windows color profiles and using hotkeys. If gradients show banding after calibration, double-check that the monitor's 10-bit or 12-bit output is enabled and that your video cable supports the full signal.
Optimizing Your 2026 Workflow: Practical Mode Management for Creators
Daily creative work benefits from minimizing menu navigation. Use Windows HDR hotkeys or macOS display presets to switch between SDR and HDR without diving into the OSD. Create task-specific profiles: one for photo retouching with dimming off, another for HDR video review with Balanced or High enabled. Pair the monitor with a colorimeter for quarterly re-calibration, especially after firmware updates or major OS changes.
Models like the KTC M27P6 stand out for 4K creators needing both resolution and HDR capability, while the M27T6S offers a compelling balance for those prioritizing refresh rate alongside color work. For deeper verification techniques, review our guide on how to verify your display calibration is actually working. Understanding what Delta E values actually mean helps interpret your results. When local dimming behavior feels unpredictable, consult explanations of what local dimming zones mean.
With these steps, KTC Mini-LED monitors become dependable partners in professional creative pipelines rather than sources of uncertainty. The initial effort pays off in faster client approvals and fewer print revisions.
Should You Use Hardware Calibration or Rely on Factory Profiles?
Hardware calibration with a colorimeter remains the most reliable path for professional deliverables that must match across devices or print. Factory sRGB modes on the M27 series already achieve respectable accuracy for many web-focused tasks, yet they lock the white point and limit fine-tuning. Use a hardware tool when your work involves client proofs, print matching, or wide-gamut deliverables; a well-tuned User mode plus ICC profile is often sufficient for general design and photography.
When Should Local Dimming Stay Enabled During Creative Tasks?
Leave local dimming disabled for SDR color grading and shadow-critical photo work to preserve the most linear gamma response. Enable Balanced mode for general productivity and client review where the contrast boost improves perceived depth without major perceptual shifts. Reserve High mode primarily for HDR mastering or content that specifically requires peak luminance. Always verify critical shadow detail with dimming off at the end of your process.
How Often Should You Re-Calibrate a Mini-LED Monitor?
Re-calibrate every three to four months under normal use, or immediately after firmware updates, OS changes, or moving the monitor to a new room with different ambient light. Mini-LED panels can experience slight drift in backlight uniformity over time, so periodic verification with test images prevents gradual inaccuracies from accumulating.
Does Windows HDR Calibration Improve Accuracy for Creative Work?
Yes, when used correctly after the SDR profile is set. The Microsoft tool defines accurate peak brightness and black level metadata for HDR1000/1400 displays. Run it specifically for your chosen luminance target so that HDR content in Photoshop, Premiere, or DaVinci Resolve renders with proper tone mapping. Skip it only if your workflow stays exclusively in SDR.
Can Software Profiles Fully Replace Hardware Calibration on These Monitors?
Software-only calibration improves consistency in color-managed applications but cannot correct the underlying panel white point or uniformity issues that a colorimeter measures. For serious professional photography or design intended for print, combine OSD adjustments with hardware measurement. Software clamping works well as a supplement for non-managed apps.
What Is the Best Way to Handle the Toggle Tax Between SDR and HDR?
Create dedicated color profiles in Windows or macOS for each workflow and assign hotkeys or quick-switch tools. Many users keep local dimming at Balanced for most of the day and only toggle to Off during final SDR grading passes. Over time, the workflow becomes muscle memory, and the improved contrast makes the extra step worthwhile for high-end deliverables.
