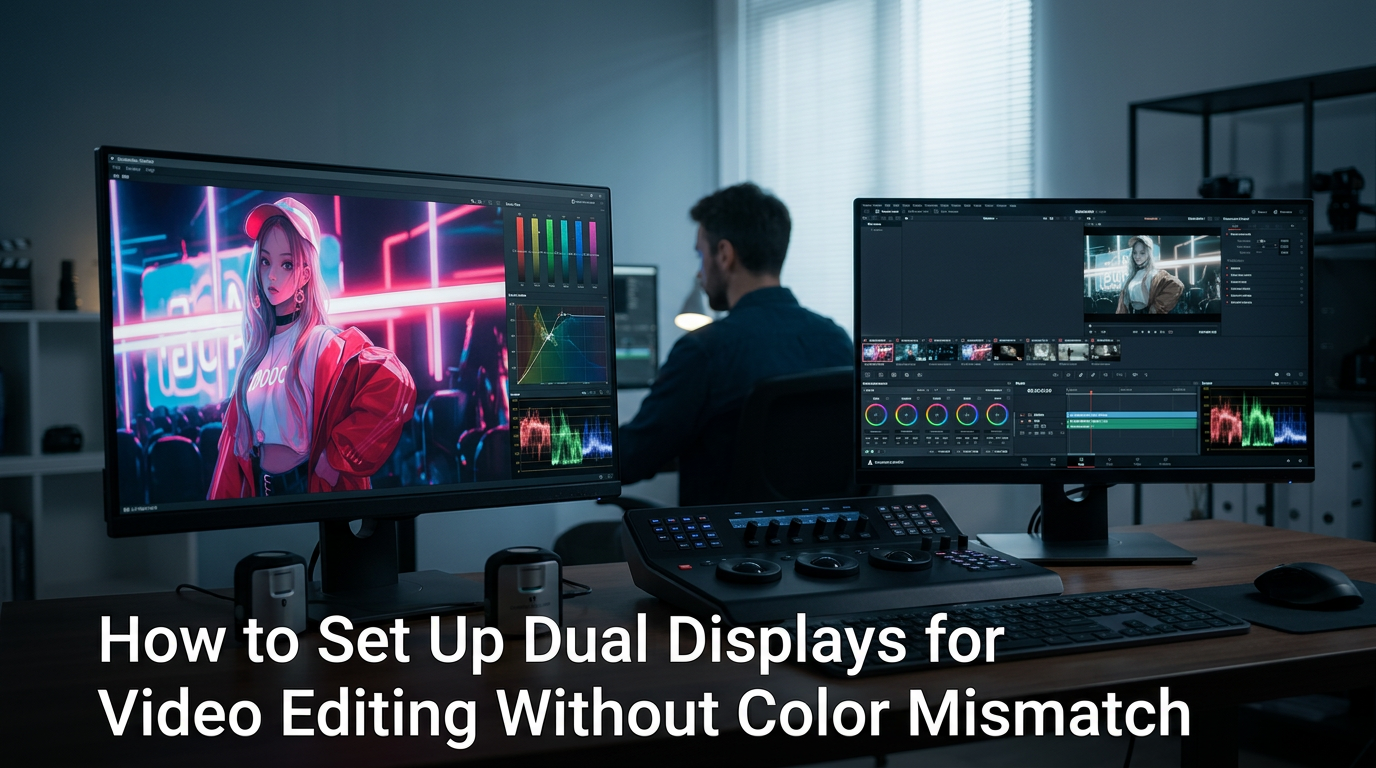

How to Set Up Dual Displays for Video Editing Without Color Mismatch

Set both monitors to the same editing target, align brightness and white point first, then use calibration profiles or a video LUT so your preview screen is not fighting your timeline screen.

Does your color grade look clean on one display, then suddenly too green, too warm, or too contrasty when you drag the window across the bezel? A proper first calibration pass can take about 20 minutes, with later checks often taking only a few minutes when your room and hardware stay consistent. Here is the practical setup that keeps two screens working like one editing system.

Why Dual Displays Help Video Editing

A dual-display setup gives your edit more breathing room: one screen can hold the timeline, bins, scopes, effects, and audio tools, while the other stays dedicated to full-screen playback or reference material. For editors, that separation matters because constant panel switching slows decisions and makes visual judgment less consistent; dual monitors for editing are most useful when each screen has a defined job instead of becoming extra clutter.

The main advantage is speed and focus. Productivity sources often cite large gains dual displays, including a 42% improvement attributed to independent workstation research, but the real editing value is simpler: you stop hiding the program monitor behind tools. In a typical editing workflow, that can mean your left 27-inch display carries the edit interface while your right display shows a clean viewer, scopes, or client notes.

The drawback is that two monitors rarely match perfectly out of the box. Even two models with similar specs can differ in brightness, color temperature, contrast, and panel behavior, and monitor calibration becomes more important as soon as you judge color across both screens.

Define Each Screen’s Role Before You Calibrate

Color mismatch gets harder to solve when both displays are expected to do everything. Decide which monitor is your hero display for color decisions and which monitor is your support display for bins, timelines, scripts, chat, or scopes. If one screen is newer, wider gamut, more uniform, or easier to calibrate, make that your grading or preview display.

For most editors, the most reliable layout is a primary editing monitor plus a reference or preview monitor. A reference monitor is the display where you judge the final image. In a higher-end setup, that may receive a clean HDMI or SDI-style video feed that bypasses normal desktop color behavior; in a leaner creator setup, it may simply be the better calibrated screen running full-screen playback.

A stacked setup can work when desk space is tight, while side-by-side monitors are easier for timeline plus preview workflows. Portable and stacked displays can be useful, but they should not become your final color authority unless they can be calibrated and viewed consistently.

Match Hardware First, Software Second

Start with the physical layer because software cannot fully fix a bad hardware mismatch. Use the same connection type where possible, preferably HDMI or DisplayPort for stable video signaling, and confirm both displays are running their native resolution and expected refresh rate. A mismatched RGB range, adapter, or old cable can make one monitor look washed out even before calibration begins.

Let both displays warm up for at least 30 minutes before serious adjustment. In editing bays, it also helps to turn off dynamic contrast, vivid modes, blue-light filters, local enhancement modes, and automatic brightness features before touching color. Those modes are useful for casual viewing, but they move the target while you are trying to grade.

Then open each monitor’s on-screen display and reset to a neutral preset if needed. A dual monitor color mismatch workflow should begin with brightness and white-point alignment because panel differences, backlight aging, and factory tolerances can create visible shifts before the operating system ever applies a profile.

Choose the Right Video Target

For standard HD and 4K web video, Rec.709 with a D65 white point is the practical baseline. D65 is the video standard target used to keep whites from drifting too blue or too amber. For many online workflows, gamma 2.2 is common in brighter rooms, while gamma 2.4 or BT.1886 is often used for darker grading environments.

Community color-management guidance points editors toward Rec.709 color space with D65 and BT.1886 for color-managed monitoring, especially when a 3D LUT can be applied in the editing software. That nuance matters because a normal ICC profile may help desktop apps, but many video applications need their own color management or LUT path for accurate program monitoring.

A practical video calibration workflow also supports D65 and emphasizes luminance control; 120 nits is a useful target for online video in a reasonably bright room. If your edit suite is darker, lower brightness may be more comfortable and more accurate for shadow judgment. If your room has daylight blasting across the desk, your eyes will compensate poorly, and no profile will save the grade.

Calibrate Both Displays in the Same Conditions

Calibration means measuring and adjusting a monitor so brightness, contrast, white point, tone response, and color output match a defined target. Software-only tools can help, but they rely on your eyes. For color-sensitive video work, a hardware colorimeter is the dependable path because it measures actual screen output rather than asking you to guess whether gray is neutral.

A strong workflow is to darken the room to your normal editing condition, warm up both monitors, set both to the same preset, then calibrate the reference screen first. After that, calibrate the UI monitor to the same white point and brightness target, even if its color gamut is weaker. A hardware calibration device creates a monitor-specific ICC or ICM profile by comparing measured patches against known color values.

After profiling, test with real material. Drag a neutral gray ramp, a skin-tone shot, and a saturated landscape across both screens. Watch the bezel crossing carefully. If the image jumps from neutral to yellow, or shadows crush on one side, go back to the monitor controls before blaming the editing software.

Use LUTs When Your Editing App Needs Them

ICC profiles are useful at the operating-system level, but video editing software does not always honor them the way photo applications do. That is why some editors use a 3D LUT for viewer correction, while a clean hardware output is preferred in more serious grading rooms.

The practical rule is simple: if the display is used for the interface, an OS profile may be enough. If the display is used for judging color, check whether your editing software needs a viewer LUT or a dedicated color-managed output. Monitor calibration for video is not only about making the desktop look good; it is about making the final exported image predictable across devices and formats.

This is also where perfection has limits. If one monitor is a wide-gamut Mini-LED panel and the other is an older basic IPS display, they may never match in black level, contrast, or saturation. In that case, use the better screen for color decisions and demote the second display to timeline, bins, scopes, and communication.

Set Up the Workspace for Consistent Judgments

Ergonomics affect color work more than many editors expect. If one display is angled sharply away from you, an IPS panel may hold up reasonably well, but a weaker panel can shift contrast and color as your viewing angle changes. Keep both screens at a comfortable distance, align their top edges, and angle them inward so your eyes meet each panel squarely.

A university ergonomics brief on dual monitors emphasizes positioning based on how much each screen is used. If you judge color on the right monitor 70% of the time, center that screen more directly in front of you instead of splitting your posture evenly and twisting all day.

The ambient light should stay repeatable. Avoid direct sunlight, strong colored LED strips, and bright lamps reflecting on one screen but not the other. If you edit at night and deliver during the day, create a routine: same room lighting, same monitor brightness, same calibration profile, same viewing angle.

Troubleshooting Common Color Mismatch Problems

If one display looks warmer, start with white point. Open a white or light gray image on both monitors and adjust RGB gain in the monitor’s on-screen menu until whites look neutral. Do not over-correct by crushing one channel far below the others; that can reduce brightness and create banding or dull output.

If one screen looks washed out, check RGB range and contrast before recalibrating. Full versus limited range mismatches can make blacks gray or crush shadow detail. If one screen looks oversaturated, confirm whether it is a wide-gamut display showing standard sRGB or Rec.709 content without proper color management.

If colors shift only inside your editing app, inspect the app’s color management, viewer LUT, and project settings. Color-management notes often call out assigning the 3D LUT correctly when colors appear wrong, such as exaggerated teal shifts, so the issue may be configuration rather than the monitor itself.

If the mismatch returns over time, recalibrate on a schedule. Some sources recommend monthly checks for demanding color work, while others suggest every few months for stable LCD displays. A practical middle ground is monthly for paid color-critical work and every three to six months for lighter editing, with an immediate recheck after driver, firmware, operating-system, monitor, or room-lighting changes.

Pros and Cons of a Dual-Display Editing Setup

A dual-display setup is worth it when your editing workload benefits from separation. You gain more visible timeline space, a cleaner preview, easier comparison against references, and less panel juggling. For complex edits with scopes, multicam, captions, sound tools, and client notes, the second display makes the workstation feel purpose-built instead of cramped.

The trade-offs are cost, desk space, cable complexity, and calibration maintenance. You may also spend more time chasing visual consistency if the displays use different panel types or have aged differently. Matching size and resolution can reduce friction, but matching color performance matters more for video than matching bezels.

For value-oriented editors, the smartest buy is often not two expensive identical displays. It is one accurate, calibratable main display plus one reliable secondary screen for non-critical work. That gives you performance where it changes the image and savings where it does not.

A Reliable Setup Recipe

Set your best monitor as the color-critical preview display, connect it with a stable cable, warm it up, disable dynamic image modes, and calibrate it to Rec.709, D65, and the gamma target that matches your delivery environment. Then bring the second monitor close in brightness and white point, profile it separately, and use it for interface work unless it can match the reference display convincingly.

For a real-world example, a two-screen editing setup might use a 27-inch 4K IPS monitor for the timeline and bins, then a calibrated 27-inch display for full-screen Rec.709 preview at about 120 nits in controlled room lighting. A travel editor might use a laptop plus portable screen, but the laptop’s better calibrated panel should remain the final color checkpoint.

Color consistency is not a one-time setting; it is a working discipline. When both displays have clear roles, shared targets, controlled lighting, and periodic calibration, your dual-monitor editing station becomes faster without making your grade less trustworthy.
