Many flight simulator pilots assume OLED's perfect blacks make it the automatic upgrade for cockpit realism. In practice, peak brightness and burn-in resistance often matter more for daylight VFR flights and long-haul sessions in 2026, where Mini-LED's HDR1400 capability keeps instruments readable under simulated high-altitude glare while avoiding the static-image risks that can damage OLED panels over time.
Why Nits Matter: The Secret to Daytime Cockpit Realism
Peak brightness, measured in nits or cd/m², determines how well a monitor can reproduce intense light without washing out details. In high-fidelity simulators like Microsoft Flight Simulator, the "Paper White" setting controls the luminance of cockpit instruments and user interface elements. When the virtual sun shines directly on the dashboard or reflects off clouds at altitude, a display needs strong peak output to keep those gauges readable and preserve the "squint-inducing" glare that adds to immersion.
According to the VESA DisplayHDR specification, HDR1400 certification requires a peak luminance of 1400 cd/m². This is more than four times the output of many standard displays and enables full-screen flash effects that better simulate realistic atmospheric conditions. High-end Mini-LED panels routinely achieve this level in small windows or with effective local dimming, giving them a clear edge in bright virtual environments.
Many OLED panels, by contrast, often limit sustained brightness to 400–600 nits in high-APL (average picture level) scenes to manage heat and power draw. This can make sunny VFR flights look comparatively flat, with instruments losing the punch needed for realistic readability. While exact requirements vary by simulator version and calibration, a higher nit capability (HDR1000 or above) generally improves gauge visibility when the sun is positioned to create glare. For pilots who spend most of their time in daylight or mixed conditions, this difference is often more noticeable than perfect blacks alone.

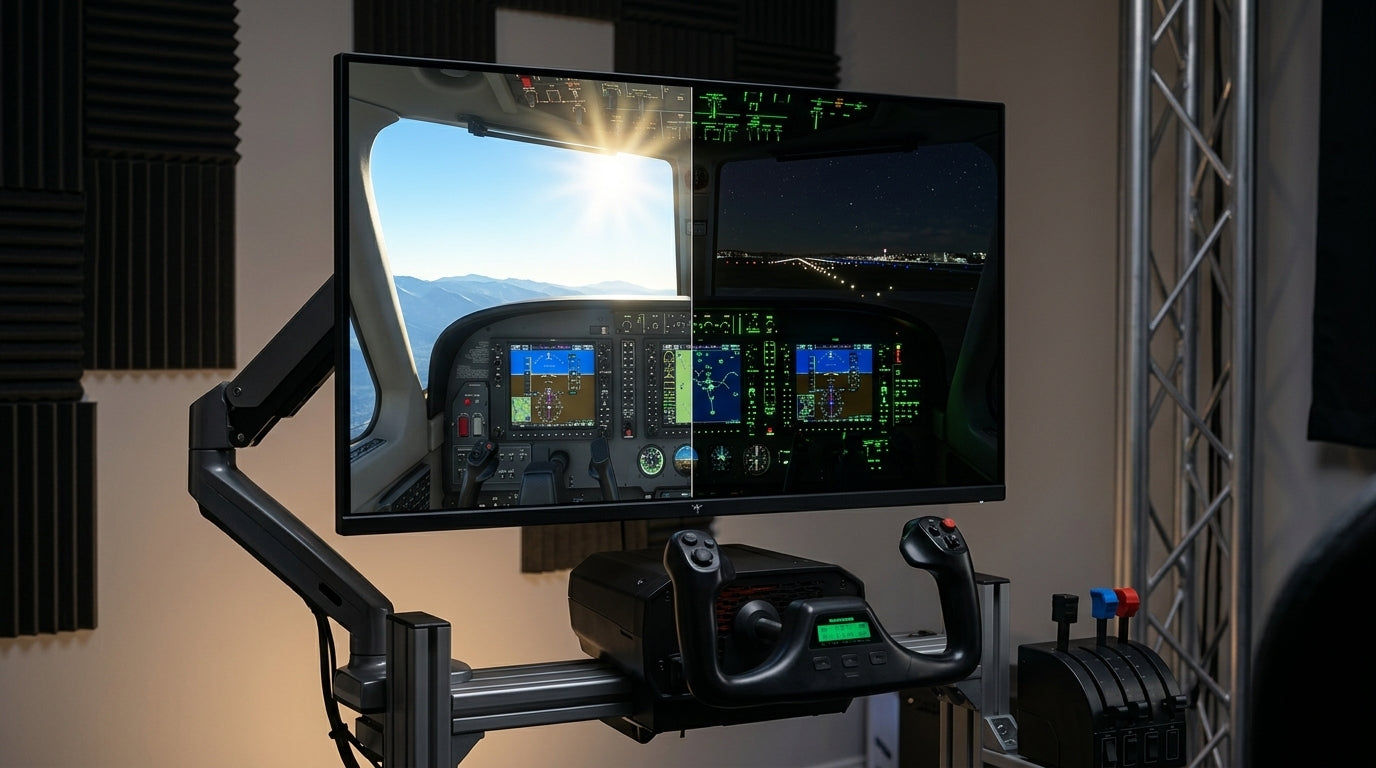

Daylight VFR vs. Night IFR: The Realism Tradeoff
Flight simulation creates distinct visual demands depending on whether you fly primarily under Visual Flight Rules (VFR) during the day or Instrument Flight Rules (IFR) at night. The best monitor choice flips with your dominant profile.
Daylight VFR realism relies on luminance punch to recreate sun-drenched cockpits, high-altitude glare off the fuselage, and bright cloud layers. Mini-LED monitors with HDR1400 certification deliver the necessary peak brightness, making cockpit instruments pop even when the virtual sun is intense. OLED's more limited brightness in these scenes can result in a flatter, less convincing daytime experience.
Night IFR realism depends on contrast precision. True black levels let bright instrument lights and runway lights stand out cleanly against a dark sky without grey haze. OLED excels here with pixel-level control and infinite contrast. However, high-zone Mini-LED panels (1152 zones or more) can reach a good-enough black level while retaining their daytime advantage.
For mixed-use pilots who split time between bright VFR and dark IFR, the decision often favors high-zone Mini-LED. It avoids the compromise of a perpetually dimmer daytime sky while providing acceptable night performance. OLED remains preferable only if your sessions are overwhelmingly night or low-light focused.
Best Display Match by Flight Simulation Profile
Use this guide to match a display to your main sim pattern: Mini-LED tends to fit bright daytime VFR-heavy use, while OLED tends to fit dark-cockpit IFR-heavy use. Mixed-use setups sit in the middle, depending on how much weight you give peak brightness versus black levels.
View chart data
| Scenario | VFR heavy | IFR heavy | Mixed use |
|---|---|---|---|
| Mini-LED | 3.0 | 2.0 | 3.0 |
| OLED | 2.0 | 3.0 | 3.0 |
This heatmap clarifies the likely best fit based on your primary flying style. For VFR-heavy pilots, Mini-LED usually delivers the stronger realism. For IFR-heavy pilots, OLED is typically the better match. Mixed users should weigh how much time they spend in bright versus dark conditions.
Local Dimming and Zone Count: Solving the Blooming Problem
Blooming, or haloing, occurs when light from a bright object on a dark background leaks into surrounding pixels. In night IFR or low-visibility approaches, this can create distracting glows around cockpit LEDs, runway lights, or stars, reducing realism and making precise instrument reading harder.
Not all Mini-LED monitors handle this equally. The number of local dimming zones directly affects how precisely the backlight can be controlled. High-zone counts (1152 or more) allow finer isolation of bright elements against deep night skies, keeping blooming to levels that many pilots find acceptable. Lower-zone or edge-lit designs often produce noticeable halos that break immersion during critical night landings.
High-zone Mini-LED therefore serves as a practical bridge technology. It combines the brightness advantage needed for daylight with contrast performance close enough to OLED for most night scenarios. For simmers who want HDR impact without the halo distraction common in lower-tier LED setups, prioritizing zone count is one of the most important checks before purchase. Our guide on What “Local Dimming Zones” Mean in Monitor Backlight Technology explains the technical differences in more detail.
The 'Glass Cockpit' Burn-In Trap: Why Flight Sim Rigs Break OLED Rules
Dedicated flight simulator rigs differ from typical gaming in one critical way: cockpit instruments remain on screen for the entire session, often at high contrast. Primary flight displays (PFDs), multi-function displays (MFDs), and autopilot interfaces feature bright white or colored elements against dark backgrounds that stay in the exact same pixel locations for hours.
This static, high-contrast usage pattern increases the risk of permanent burn-in on OLED panels, which rely on organic materials that degrade over time under constant illumination. Long-haul flights with extended autopilot phases are especially problematic because screen-saver or pixel-shifting features may not activate while the simulator is actively running telemetry.
Mini-LED panels avoid this concern entirely because they use a traditional backlight rather than self-emissive pixels. For pilots whose sessions regularly exceed four consecutive hours or who focus primarily on civilian and commercial flying, the reliability advantage often outweighs OLED's contrast benefits. Casual simmers who fly mostly short hops, external chase views, or combat scenarios may still find the burn-in risk manageable, but dedicated rig builders should treat it as a key disqualifier for OLED in heavy-use glass-cockpit setups.
Setup Considerations: Matching Your Monitor to Your Rig
Your physical setup and room conditions further shape the right choice. In bright rooms or setups with daylight coming through windows, Mini-LED's higher sustained brightness helps maintain cockpit realism. Light-controlled environments favor OLED's superior blacks for night flying.
Triple-monitor or wrap-around cockpit arrays introduce another constraint. Off-axis viewing angles (often 45–90 degrees) can cause color shift or contrast loss on VA panels. IPS-based panels are generally preferred here to keep the horizon and distant scenery consistent across the array. Our multi-monitor flight sim setup guide provides more detail on panel selection for these configurations.
GPU capability also matters. Microsoft Flight Simulator 2026 is demanding at high resolutions and refresh rates, especially with HDR enabled. A high-zone Mini-LED or OLED at 4K will require a strong modern GPU to maintain smooth frame rates without dropping settings. If your current graphics card is mid-range, a 1440p Mini-LED may deliver a better balance of visual quality and performance.
When it comes to specific options, the KTC Mini LED 27" 4K 160Hz HDR1400 Gaming Monitor | M27P6 stands out for pilots who want 4K resolution, 1152 local dimming zones, and full HDR1400 performance in a single-monitor or primary display role. Its Fast IPS panel also helps with the viewing angles common in cockpit builds. For those prioritizing higher refresh rates at 1440p, the KTC Mini LED 27" 180Hz 2K HDR1400 Gaming Monitor | M27T6 offers similar brightness and zone benefits with faster response. These models align well with the brightness and durability needs discussed for most serious sim rigs.
If your flying is almost entirely night IFR in a dark room and you accept the burn-in precautions, an OLED like the KTC OLED 27" 2K 240Hz/0.03ms USB-C Gaming Monitor | G27P6 can deliver exceptional contrast. Check your typical session length and instrument layout before committing.
For broader inspiration on immersive setups, see our articles on Should Your Next Gaming Monitor Be an Ultrawide? A Gamer's Guide and the MiniLED vs. OLED: Which Display Technology Wins for Gaming in 2025? comparison.
How Should I Choose Between Mini-LED and OLED for My Flight Simulator?
Choose Mini-LED if you fly mostly daylight VFR, use your rig for long sessions with static instruments, or have a bright room. The combination of HDR1400 brightness, high zone counts, and zero burn-in risk makes it the more practical long-term investment for most dedicated sim pilots.
Choose OLED primarily for night IFR or combat simulation in controlled lighting if your sessions are shorter and you prioritize perfect blacks above all else. Even then, consider the maintenance steps required to minimize burn-in risk.
In most 2026 sim rigs, a high-zone Mini-LED strikes the best balance between cockpit readability, realism across conditions, and durability. Verify your GPU can drive the resolution and refresh rate you select, and test HDR calibration in your simulator to fine-tune the Paper White setting for your specific monitor.
