Yes, but the cleanest setup usually needs HDMI for video and USB for touch and power. The key is buying a screen with the right inputs, not assuming every USB-C touchscreen will work from one cable.
Trying to build a kiosk, dashboard, smart home panel, or mini arcade controller, only to get a blank screen or dead touch input? In hands-on display setups, the most reliable approach is simple: HDMI carries the picture, USB carries touch, and a separate power path prevents brownouts. This article shows you how to choose the right portable touchscreen monitor and wire it so your project feels fast, stable, and genuinely interactive.
What a Portable Touchscreen Monitor Adds to a Project
A portable touchscreen monitor turns a hidden board into a direct-control interface. Instead of connecting a mouse, keyboard, and full-size display, you can tap buttons, drag sliders, annotate screens, launch scripts, or control dashboards from one compact panel.
For interactive projects, that matters. A weather station becomes a wall console. A home automation project becomes a touch panel. A Python GUI becomes a product-style control surface. A retro emulation build becomes a small all-in-one machine. A portable display is especially useful because it is designed to be moved, packed, propped up, and connected to different devices, which is exactly how many maker projects evolve over time; portable monitor features are commonly evaluated by size, weight, resolution, power draw, touch support, durability, and accessories.
The performance-driven answer is not to buy the fanciest screen. It is to match the screen to the board’s real output and the project’s control style. A 15.6-inch 1080p touchscreen is often more useful than a small low-resolution panel if users need readable buttons, maps, spreadsheets, or status tiles. A 7-inch screen can be perfect for a compact appliance UI, but cramped for dashboards with multiple charts.
Video, Touch, and Power Are Separate Jobs
The most important definition is simple: video, touch, and power are three different functions. Some USB-C monitors combine them through one cable when the host supports the right USB-C video mode and enough power delivery. Small development boards are not always that kind of host.
Many boards send display output through Micro-HDMI, not through a USB-C power port. That creates a common trap with USB-C-only portable monitors. A passive Micro-HDMI-to-USB-C cable usually will not work, because many USB-C displays expect DisplayPort Alt Mode or USB-video drivers rather than raw HDMI. One forum discussion around a USB-C monitor highlights this exact issue: video output through Micro-HDMI, while USB-C-only monitors may need a specific active converter or drivers.
For most builders, the practical wiring target is this: HDMI from the board to the monitor for image, USB from the board to the monitor for touch data if supported, and external power to the monitor if the board cannot supply enough current. That looks less elegant than one cable, but it is more reliable for unattended projects.
Which Portable Touchscreen Specs Matter Most?
Screen size drives usability first. Portable monitors commonly sit between 12 and 17 inches, and 14 to 15.6 inches is the balanced zone for projects that need readable UI elements without becoming bulky. Travel-focused buying advice often points to 15-inch-class displays as a sweet spot because they align well with common laptop sizing while remaining bag-friendly; portable monitor sizes in this range balance workspace and setup flexibility.
Resolution is the second decision. Full HD, or 1920 x 1080, is the value pick for most touchscreen projects because it keeps text sharp enough, UI scaling manageable, and power demands moderate. A 4K portable touchscreen can look sharper for photos, design previews, or detailed maps, but it costs more, draws more power, and may add configuration friction. For a control panel, 1080p is usually the reliable performance choice.
Touch support must be verified, not assumed. Many portable monitors look similar in product photos, but some are display-only. A 7-inch model noted in the source material, for example, is explicitly non-touch, which makes it useful for visual output but wrong for an interactive interface. Marketplace results show a broad range of portable touch monitor options with common claims such as 10-point touch, IPS panels, USB-C, HDMI, speakers, covers, and stands, but listings still need careful input-by-input checking.
Brightness and mounting are also project-critical. A dim glossy screen can look fine in a dark workbench test and become frustrating near a window. A weak folding case can collapse during repeated taps. If the project is for a counter, classroom, trade-show demo, or living room panel, prioritize a sturdy kickstand or VESA mounting more than a flashy spec line.
Project type |
Sensible screen choice |
Why it works |
Smart home panel |
10 to 15.6-inch 1080p touchscreen |
Readable controls without excessive power draw |
Portable coding console |
14 to 15.6-inch 1080p or 1200p touchscreen |
Good balance of text clarity and bag fit |
Photo or design preview |
Higher-resolution color-focused display |
Better detail, but higher cost and power needs |
Mini arcade or kiosk |
7 to 15.6-inch HDMI touchscreen |
Compact, direct, and easier to mount |
A Reliable Setup Pattern

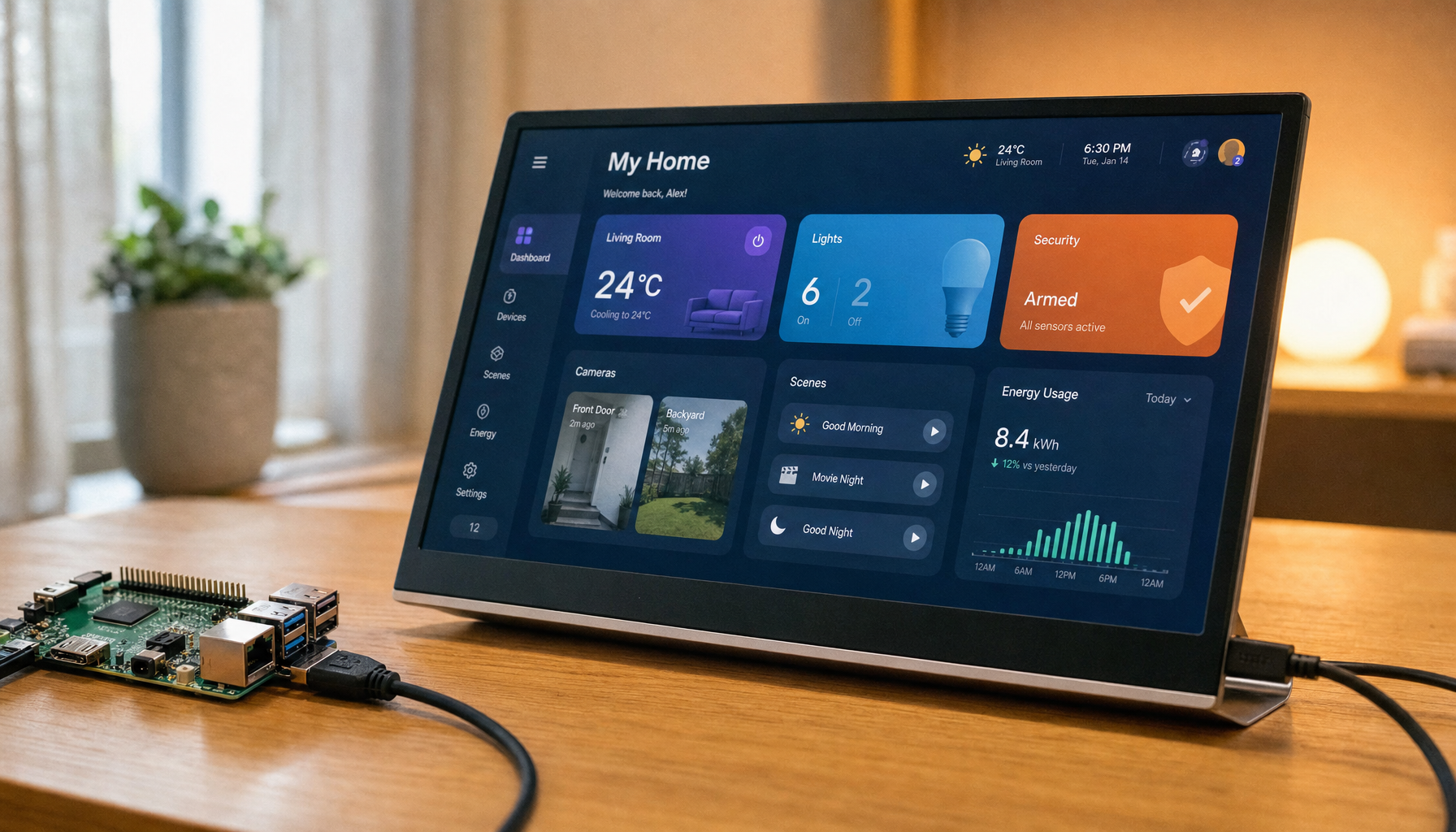

Use the board’s HDMI-family display output with the correct cable or adapter for your monitor. Then connect the monitor’s USB touch port to one of the board’s USB ports. If the monitor has a separate USB-C power input, feed it from a dedicated wall adapter or battery bank rather than relying on the board unless the monitor is specifically designed for low-power operation.
A useful real-world reference is a 15.6-inch 1080p IPS portable display with HDMI input, USB-C power, anti-glare coating, speakers, and a sturdy kickstand. Its USB-C port is power-only, so it needs HDMI for video rather than one-cable USB-C video. The review measured average brightness at 271 nits and noted power draw as low as 3.16W at 25% brightness, making a Pi-friendly portable display a useful reference point for this class of setup.
For a touchscreen version, the same principle applies. HDMI solves video. USB solves touch. External power solves stability. Once the operating system boots, many USB HID touchscreens behave like a mouse-style input device. If touch is offset, rotated, or mapped to the wrong display, the fix is usually calibration or display orientation settings rather than replacing the monitor.
Pros and Cons for Interactive Projects
The advantages are strong. A portable touchscreen reduces desk clutter, makes the project self-contained, and gives users a natural interface. Touch also lowers the barrier for non-technical users because they do not need a keyboard command or remote session to operate the project. For office productivity displays, dashboards, inventory panels, and smart screens, that is a major usability upgrade.
The trade-offs are equally real. Touchscreens cost more than non-touch displays, consume more power, and can introduce compatibility limits. USB-C naming is especially messy because a USB-C port can mean charging only, data only, video-capable DisplayPort Alt Mode, or some combination. Portable monitor guidance consistently warns buyers to check connection support, power use, and physical design rather than buying on screen size alone; touchscreen monitors are useful for markup, sketching, and note-taking, but they may cost more and draw more power.
There is also a performance expectation issue. High refresh rates matter in competitive gaming monitors because smoother updates and lower perceived delay can improve motion clarity, but most interactive projects do not benefit from 240Hz or 360Hz panels. Gaming monitor research emphasizes matching display capability to the system’s output, and that same logic applies here: high refresh rate is valuable only when the source can feed it and the project needs it. For a kiosk, dashboard, or smart controller, stable 60Hz touch responsiveness usually beats expensive esports specs.
Buying Checklist in Plain English
Choose a monitor with HDMI or mini-HDMI input if you want the lowest-friction experience. If the screen is USB-C-only, confirm whether it accepts HDMI-to-USB-C active converter input, DisplayPort Alt Mode, or USB-video drivers, because those are not interchangeable. For touch, confirm that the monitor exposes touch through USB and that it works with Linux.
Aim for 1080p unless your project genuinely needs finer detail. Pick 15.6 inches for a flexible desktop or portable workstation build, and go smaller only when mounting space matters more than readability. Favor IPS for wider viewing angles, a matte or anti-glare finish for bright rooms, and a rigid kickstand or mount if people will tap the screen often.
Budget also has a performance angle. Basic portable monitors can be inexpensive, while models with touch, higher resolution, stronger color, metal chassis, or built-in batteries cost more. Travel monitor research notes that decent portable second screens can sometimes be found at low sale prices, but paying extra makes sense when you need touch, color accuracy, or a larger panel; portable second screens are best chosen by workflow rather than by the highest spec sheet.
FAQ
Can a small development board power a portable touchscreen monitor?
Sometimes, but it is not the default assumption. Small displays may run from a USB port, while larger 15.6-inch touchscreens often need separate power. If the screen dims, disconnects, flickers, or touch stops responding, use a dedicated power adapter for the monitor and a proper power supply for the board.
Can I use one USB-C cable from the board to the monitor?
Usually not with a standard small-board setup. A one-cable monitor connection needs the host to support USB-C video output and enough power delivery. Many laptops do this; small development boards generally rely on HDMI-family display output, so a one-cable USB-C portable monitor can become an adapter and driver problem.
Is 4K worth it for touchscreen projects?
Only for specialized visual work. For smart panels, kiosks, dashboards, and control surfaces, 1080p is sharper than necessary in many layouts and easier to power. Spend the extra budget on reliable touch, mounting, brightness, and connection compatibility first.
Final Word
A portable touchscreen monitor can make a compact computing project feel like a finished smart screen instead of a bench prototype. The winning setup is practical: buy HDMI-friendly, verify USB touch support, power the display properly, and choose screen size around the way people will actually tap, read, and interact with it.
