Why Does My Portable Monitor Only Work When Plugged Into Specific USB-C Ports on My Laptop?

Your portable monitor works only on certain USB-C ports because USB-C describes the connector shape, not the features behind it. The working port likely supports DisplayPort Alt Mode, Thunderbolt, or full video output, while the non-working port may support only charging, data, or low-power accessories.

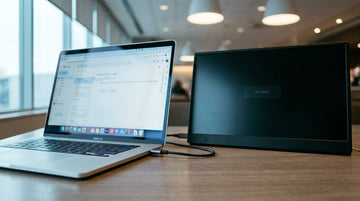

Is your portable monitor lighting up instantly on one side of your laptop, then showing “No Signal” when you move the same cable to another USB-C port? A quick port check can save you from replacing a good screen, because the real issue is often the laptop’s port capability, cable type, or power path. Here’s how to identify the right port, fix the setup, and buy smarter next time.

The Short Answer: Not All USB-C Ports Carry Video

USB-C is a physical connector. It can carry power, data, video, audio, or several of those at once, but only when the laptop, cable, and monitor all support the needed feature. A portable monitor connected by USB-C usually needs DisplayPort Alternate Mode, often shortened to DP Alt Mode, because that is the feature that sends display video through the USB-C port.

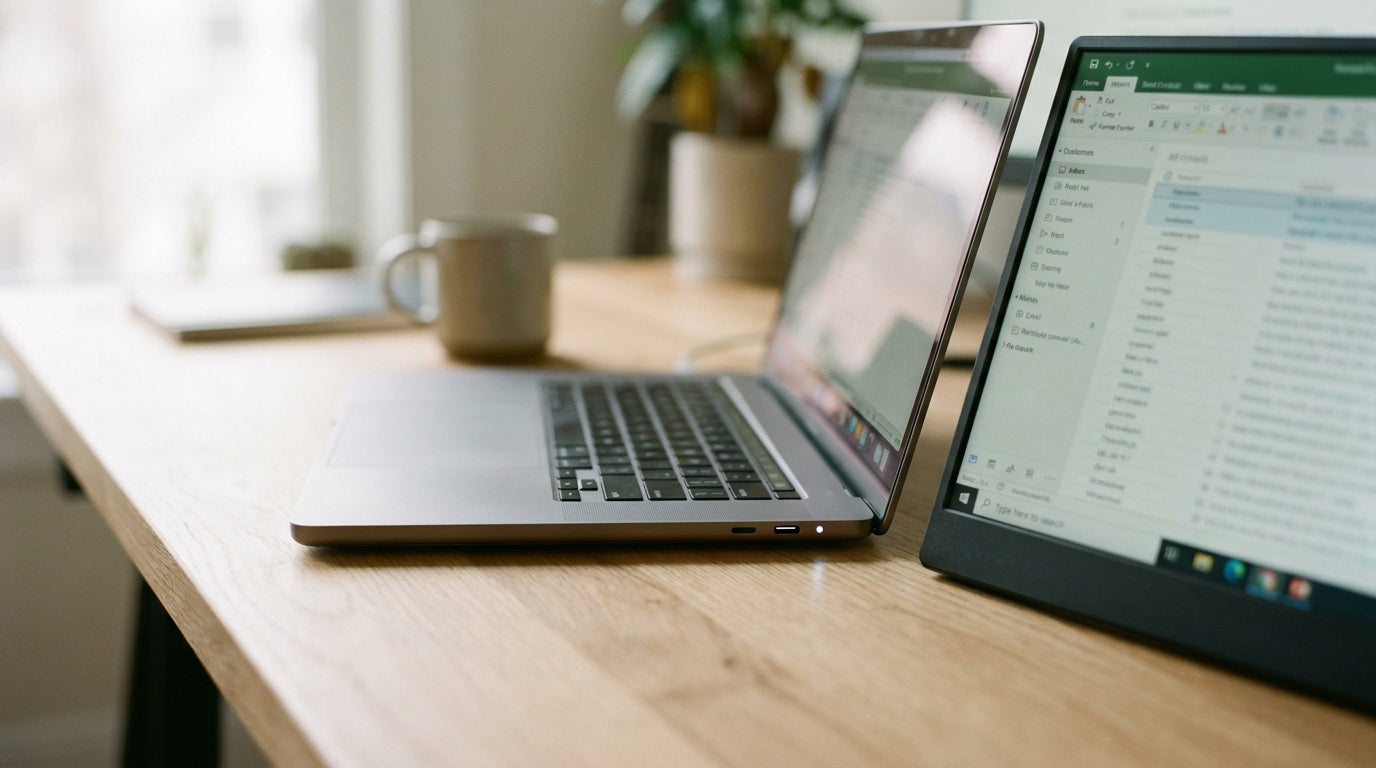

That is why one USB-C port on your laptop may run a 15.6-inch portable display perfectly while another port beside it does nothing. The ports may look identical, but internally one may connect to the graphics system while the other is wired only for USB data or charging. Treat each USB-C port as its own spec sheet, not as a duplicate socket.

What “Specific USB-C Ports” Usually Means

When a portable monitor works only on one USB-C port, the most common explanation is that the working port supports video output and the others do not. Portable monitor compatibility depends on the full device path, and USB-C DisplayPort Alt-Mode is repeatedly identified as the key connector feature because it can carry video, data, and sometimes power through one cable.

A real-world example is a laptop with two USB-C ports: the left port may have a small lightning or DisplayPort-style symbol and support video, while the right port may have only a USB symbol and support data transfer. Your monitor is not being picky. It is responding to whether the laptop is actually sending a display signal.

This also explains why a USB-C dock might charge your laptop and run your keyboard, yet fail to detect external displays. Charging proves power delivery is working. A mouse cursor proves data is working. Neither proves that the port can send video.

DP Alt Mode, Thunderbolt, DisplayLink, and Plain USB-C

DP Alt Mode is the most direct path for portable monitors. It sends DisplayPort video over USB-C, usually with no special display driver needed when both devices support it. Thunderbolt 3, Thunderbolt 4, and newer USB4 ports often support external displays too, but you still need to confirm the exact laptop model because branding and implementation vary.

DisplayLink is different. It sends compressed display data over regular USB and requires a software driver. This can be useful when your laptop’s USB-C port lacks native video output, but it is not the same as DP Alt Mode. For office productivity, DisplayLink can be a practical workaround. For gaming, motion-heavy creative work, or low-latency screen use, native DP Alt Mode or Thunderbolt is usually the cleaner signal path.

Plain USB-C data ports are the trap. They may transfer files quickly and power accessories, yet never drive a monitor. A portable display guide from KTC emphasizes checking the source device, cable, dock, and monitor input before blaming the monitor, because USB-C convenience depends on the entire connection path supporting video.

Why the Cable Can Be the Culprit

The cable matters as much as the port. Some USB-C cables are built mainly for charging. Others support data but not video. A portable monitor may need a full-featured USB-C cable that carries the display signal and enough power for stable operation.

This is especially common when someone swaps in a phone charging cable because it “fits.” It may charge the monitor or wake its backlight, but the screen still says “No Signal.” That symptom often means power is present but video is missing. For portable work, keep the monitor’s included USB-C cable in your bag as the baseline test cable, then label any replacement cable you have confirmed for video.

If your monitor also has mini HDMI, test that path. HDMI is widely supported for video, but it usually requires a second USB cable or wall adapter for power. A portable monitor setup guide notes that a full-featured USB-C connection can carry video, data, and power through one cable, while HDMI normally handles video only.

Power Delivery Can Make a Working Port Look Broken

Portable monitors are lean, but they still need stable power. Some laptop USB-C ports provide enough power for a low-brightness 1080p panel but become unstable when brightness is raised, speakers are active, or a dock is also feeding other devices. The result can be flickering, random disconnects, or a screen that works only when the laptop is plugged into AC power.

A quick practical test is to connect the portable monitor to its own USB power source while using USB-C or HDMI for video. If the monitor suddenly becomes stable, the issue is not the display signal alone; it is the power budget. USB-C monitors with power delivery can simplify a desk by charging the connected device, but power delivery capacity still has to match the laptop’s needs.

For example, a thin office laptop may be comfortable with around 60W to 65W charging, while a performance laptop may demand more. If the monitor or dock provides less than the laptop expects, the system may charge slowly, drain under load, or lose display stability when everything is connected.

Resolution and Refresh Rate Can Expose Port Limits

A portable monitor that works at 1080p 60Hz may fail, flicker, or downshift when pushed to a sharper or faster mode. This is not always a defect. It can be a bandwidth limit in the USB-C mode, dock, HDMI adapter, or laptop graphics output.

For office work, 1080p at 60Hz is usually forgiving. For gaming or high-refresh portable panels, the signal chain becomes more demanding. If you bought a 144Hz portable monitor, the laptop must output that resolution and refresh rate, the cable must carry it, and the monitor input must accept it. If any part is weaker, you may see a lower refresh option or no stable image.

The same principle applies to ultrawide and high-resolution desk monitors. A laptop-side HDMI 1.4 port, for example, can limit refresh at higher resolutions even when the monitor itself supports faster input over HDMI 2.0 or DisplayPort. The monitor’s spec does not override the laptop’s output limit.

How to Diagnose the Right Port Without Guesswork

Start with the port markings. Look for a DisplayPort logo, Thunderbolt lightning symbol, or manufacturer documentation that explicitly says the USB-C port supports display output, DP Alt Mode, Thunderbolt, or USB4 display. If the port is described only as USB 3.x data or charging, assume it will not drive a USB-C portable monitor unless you use a DisplayLink solution.

Next, test the known-good path. Use the USB-C port that works, the monitor’s original cable, and a basic 1080p 60Hz mode. Then change only one variable at a time: move to another port, try another cable, add separate power, or test HDMI. This isolates the weak link instead of turning troubleshooting into guesswork.

On a PC, press Win + P and choose Extend, then open Display Settings and use Detect if needed. If the display appears but looks blurry or cramped, adjust scaling. Higher-resolution portable screens often feel better at 125% or 150% scaling for office work, especially on 16-inch panels.

When a Dock Is Involved

A USB-C dock adds another layer. The laptop port must support the dock’s display method, the dock must support the monitor’s resolution and refresh rate, and the dock must receive enough power. A docking station troubleshooting source notes that monitor detection can fail because of port capabilities, display settings, power delivery, drivers, operating system behavior, and hardware design.

For a practical example, a dock may advertise dual HDMI outputs, but your laptop’s USB-C port may lack DP Alt Mode. In that case, the dock can still pass USB accessories and charging while the monitors stay black. If the dock is DisplayLink-based, install the correct DisplayLink driver. If it is DP Alt Mode-based, no driver can add video support to a laptop port that was not built for it.

Buying Advice for Fewer Connection Surprises

If you are buying a portable monitor for productivity, prioritize a model with both USB-C and HDMI. USB-C gives you the clean one-cable setup when your laptop supports it. HDMI gives you a dependable fallback for older laptops, consoles, and meeting-room adapters, as long as you provide separate power.

The mainstream portable monitor market is crowded, with many shopping results clustering around 15.6-inch 1080p IPS designs with USB-C, HDMI, and 60Hz refresh rates. That makes compatibility details more important than the headline term “USB-C portable monitor.” The USB-C portable monitor label should start your shortlist, not finish it.

For remote work, a 15.6-inch 1080p panel is the safe baseline. A 16-inch 2560 x 1600 portable display can feel more premium for spreadsheets, dashboards, and document review because the taller 16:10 shape gives more vertical room. For gaming, look beyond refresh rate and confirm that the actual source device can drive that rate through the port you plan to use.

FAQ

Can I make a non-video USB-C port output to a portable monitor?

Not through a standard USB-C display cable. If the port lacks DP Alt Mode or Thunderbolt display support, you need another video-capable port, HDMI, or a DisplayLink-based adapter or dock with the right driver.

Why does my laptop charge through the USB-C port but not show video?

Power delivery and video output are separate USB-C features. A port can charge the laptop while having no connection to the graphics output.

Is HDMI better than USB-C for portable monitors?

HDMI is often more universal for video, but it usually needs a separate USB power cable. USB-C is cleaner when it works because one cable may handle video and power, but only if the laptop port, cable, and monitor all support the right features.

Should I replace the monitor?

Not until you test it with a known video-capable USB-C port, the original cable, separate power, and HDMI if available. If the monitor works in one configuration, the issue is usually compatibility, power, cable quality, or laptop port capability rather than a failed screen.

A portable monitor is at its best when the signal path is intentional. Match the laptop port, cable, power source, and display mode first, and your second screen becomes what it should be: a reliable productivity or gaming upgrade instead of a mystery cable ritual.
