Desk Space Requirements for Common Multi-Monitor Setups: Sizes, Layouts, and Planning Tips

Most dual-monitor desks need 48 to 60 inches of usable width, while larger gaming and productivity layouts often need 72 inches or more. Depth matters just as much: plan for an arm’s-length viewing distance, room for inward monitor angles, and at least 3 inches behind the displays for cables.

Your desk may look wide enough until the monitor stands, keyboard, mouse pad, speakers, and cable bend radius all compete for the same surface. A practical dual 27-inch setup often needs a 55- to 60-inch desk once you include side clearance and comfortable monitor angles. This guide breaks down the real desk space requirements for dual, triple, ultrawide, stacked, and portable monitor layouts so you can plan a setup that fits before you buy the displays.

Measure the Desk Space That Actually Matters

The monitor size printed on the box is not the number that determines whether your setup fits. A “27-inch monitor” is measured diagonally, while the desk space it consumes depends on the physical width, height, stand footprint, depth, bezel thickness, and the angle at which you place it; for desk planning, physical width is the more useful number. A typical 27-inch display is about 24 inches wide, so two of them do not literally need 54 inches of screen span, but they still need breathing room for bezels, inward angle, speakers, a mouse area, and safe edge clearance.

Usable desk width is the clear, uninterrupted surface available for screens and peripherals. If a desk is 60 inches wide but a PC tower, bookshelf speaker, microphone arm, or lamp permanently occupies 8 inches on one side, the monitor layout should be planned as a 52-inch setup. For a high-refresh-rate gaming desk, this matters even more because a large mouse pad, low-DPI mouse movement, controller dock, headset stand, and capture gear can easily take up the same side space that a second display needs.

Depth is the second measurement to take seriously. Angling two monitors inward can add 8 to 12 inches of effective depth compared with a flat side-by-side setup, which can make a desk under 24 inches deep feel cramped. Add at least 3 inches behind the monitors for cables, power plugs, and common video-cable bend clearance so the screens are not forced against the wall.

Common Desk Widths for Dual, Triple, and Ultrawide Setups

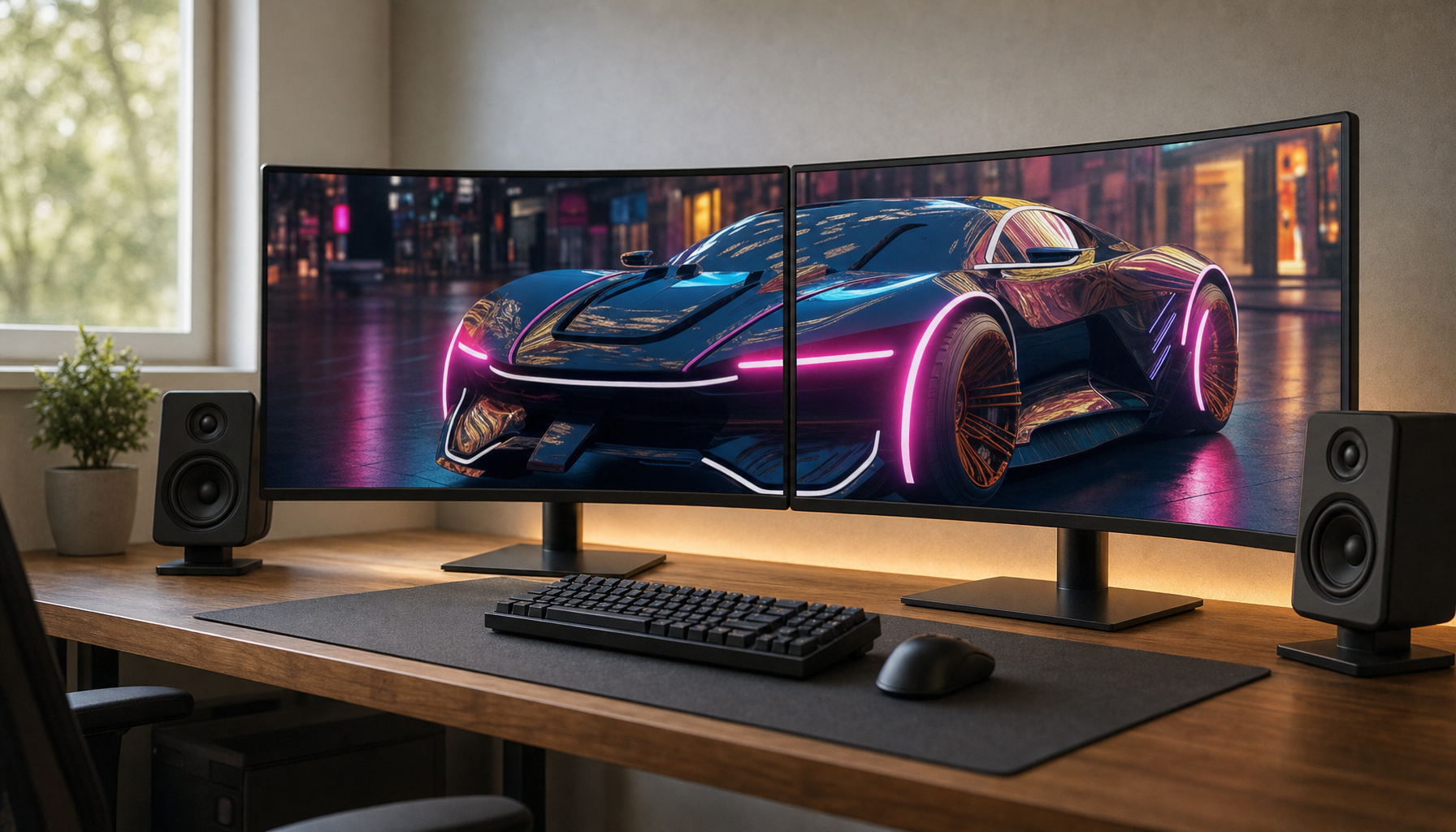

For dual 24-inch or 24.5-inch monitors, a 48-inch desk is usually the practical minimum if the displays have slim bezels and you are not using oversized speakers. Dual 27-inch monitors are more comfortable on a 55- to 60-inch desk, while dual 32-inch monitors or an ultrawide plus a secondary display usually call for 72 inches or more. A useful planning shortcut is to estimate angled dual-monitor width at about 1.7 times the physical width of one monitor, then add side clearance for mouse movement and accessories.

A triple-monitor setup is rarely just “one more screen” from a desk-space perspective. Three 27-inch displays can span roughly 6 ft or more once angled, and the setup also needs enough depth to keep the side panels within comfortable peripheral vision. For racing, flight, and simulation gaming, that wraparound effect can be worth it; for everyday work, a triple layout can become too wide if the outer screens require frequent head turning.

Ultrawide monitors reduce the number of display panels, cables, power bricks, and stand bases. Users who switch from dual monitors to a single ultrawide often report less cable-management work and a cleaner desk, but dual monitors offered more physical flexibility, especially when one screen can rotate to portrait mode for chat, research, code, or long documents. The space tradeoff is simple: ultrawide setups are cleaner and centered, while dual setups are more modular.

Desk Depth, Viewing Distance, and Ergonomic Comfort

A comfortable monitor position depends on viewing distance and viewing angle, not just whether the displays physically fit. Office ergonomics guidance places a typical monitor around arm’s length away, with the screen center slightly below the user’s horizontal eye line; viewing distance is commonly around 31.5 to 44 inches depending on posture, task, and downward viewing angle. For most home and gaming desks, that means a 24-inch-deep desk can work for smaller displays, while 27-inch, 32-inch, ultrawide, and multi-monitor setups are usually more comfortable at 28 to 30 inches deep or more.

Monitor height also affects how much desk space feels usable. If screens sit too high, the user may lift the chin; if they sit too low or too close, the user may lean forward. A good starting point is to place the top edge of standard monitors at or slightly below eye level, while monitors 30 inches or larger should usually have eye level fall within the upper third of the screen. That lets the eyes move naturally across the display without forcing constant neck extension.

For dual monitors used equally, place them edge-to-edge in a shallow semicircle with the meeting point centered in front of you. For a primary-plus-secondary layout, put the main gaming or work monitor directly in front of your chair and angle the secondary screen to the side. This is especially important for high-refresh-rate gaming monitors, where the primary screen should sit squarely in front of the keyboard and mouse so your shoulders, wrists, and aim are not subtly twisted for hours.

How Depth Changes by Screen Size

A dual 24-inch setup can usually work on a 24-inch-deep desk if the stands are compact or the monitors are arm-mounted. Dual 27-inch monitors are better with 28 to 30 inches of depth because the screens are wider, more likely to be angled, and harder to view comfortably when pushed too close. Dual 32-inch monitors, 34-inch ultrawides, and 49-inch super ultrawides benefit from 30 inches or more so the image fills your view without forcing scanning fatigue.

Curved ultrawides change the calculation slightly. The curve can make the edges easier to see from a centered seat, but the monitor’s stand may be deeper than the panel itself. Before buying, check the full depth with the stand attached, not just the panel thickness listed in the spec sheet.

Monitor Arms, Stands, and Cable Clearance

A monitor arm can free up a large amount of desk surface, but it does not eliminate space requirements. Arms move the footprint from the desktop to the back edge of the desk, so you still need rear clearance, a clampable surface, and enough desk strength for the monitor weight. This is especially relevant for 32-inch gaming monitors, OLED ultrawides, and heavy high-refresh-rate displays with large power bricks or deep rear housings.

Standard monitor stands are simpler, but they often consume the exact center of the desk where the keyboard, soundbar, microphone base, or desk mat wants to be. Wide V-shaped gaming stands can look stable and aggressive, yet their front legs can interfere with large mouse pads. If you use stock stands for dual 27-inch displays, a 60-inch-wide desk may still feel tight because each stand base occupies depth and width that a monitor arm would leave open.

Cable clearance is not optional. Add at least 3 inches behind every screen for cables, especially if you use thick high-bandwidth video cables for high-refresh-rate monitors, angled video adapters, single-cable display docks, keyboard-video-mouse switches, or monitor-mounted light bars. Poor cable spacing can stress ports, force the display too close to a wall, and make it harder to adjust the screen angle later.

Clamp and Wall Clearance Checks

Before choosing arms, inspect the desk edge. A clamp arm needs a flat rear lip, enough underside clearance, and a surface that will not crush under pressure. Desks with thin particleboard tops, decorative rear panels, cable trays, or metal crossbars may need a reinforcement plate or a grommet-style mount.

Also check what sits behind the desk. If the desk is tight against a wall, a dual-arm mount may not fold back cleanly. For renters or apartment setups where wall mounting is not an option, a single heavy-duty arm for the primary monitor plus a compact stand for the secondary display can be a practical compromise.

Choosing the Right Layout for Your Work and Gaming Habits

The best layout depends on which screen deserves the center position. For gaming, the primary high-refresh-rate monitor should be directly in front of you, with secondary panels used for a chat platform, streaming controls, walkthroughs, monitoring software, or browser windows. For productivity, two equally used monitors can sit symmetrically, while a primary-plus-portrait layout works better when one screen is used for writing, research, email, chat, or long vertical feeds.

A single large display can reduce desk clutter and help you face straight ahead, but it can also make multitasking feel less separated. One writer’s preferred work setup used a central 34-inch curved ultrawide with a 27-inch portrait screen on the side, after finding that a single large screen was cleaner but less convenient for multitasking; the curved ultrawide monitor handled the main workspace while the portrait display handled secondary tasks. That layout is a strong option for a 60- to 72-inch desk because it avoids a center bezel while preserving a dedicated side screen.

Triple monitors make the most sense when the outer displays serve a specific purpose. For simulation gaming, side monitors extend peripheral vision. For streaming, they can separate the game, chat, production controls, and monitoring tools. For general office work, however, triple monitors can become inefficient if the outer displays are so far away that you constantly rotate your neck.

When Fewer Larger Screens Are Better

Choose a single ultrawide or super ultrawide when you want fewer cables, fewer stands, a cleaner desktop, and no center bezel. This works well for timeline editing, coding with multiple panes, immersive single-screen gaming, and broad spreadsheet work. Add window-management tools if you need repeatable zones for browser, notes, chat, and editing apps.

For a concrete comparison point, a 49-inch DQHD 180Hz 1000R curved gaming monitor is a 49-inch 5120×1440 display, so compare its actual width, stand depth, and cable clearance against the two 27-inch monitors it might replace rather than assuming the footprint is smaller.

Choose separate monitors when physical separation helps your workflow. A portrait secondary display is hard to replace with an ultrawide because it gives you more vertical scan space for documents, logs, chat, and research. Separate monitors also make it easier to mix display types, such as a 240 Hz gaming monitor in the center with a color-accurate 4K editing display or a small portable monitor on the side.

Ergonomic Setup Rules for Multi-Monitor Desks

For two monitors used about equally, keep the displays immediately next to each other so your eyes do more of the movement and your head does less. Dual-monitor ergonomics guidance recommends placing screens close together, at the same height, and with matching size and resolution where possible; dual monitors with mismatched heights, bezels, and resolutions can increase neck movement and eyestrain. If the monitors are different sizes, align the top edges as a practical starting point.

If one monitor is dominant, center that display on your body, not on the desk. Your chair, keyboard, mouse, and primary display should form one straight line. Put the secondary monitor close to the main panel at a shallow angle, and avoid leaving a large gap between screens because that turns every glance into a head movement.

Multifocal lenses, large monitors, and stacked layouts need extra care. If you wear multifocals, lower the screen until you can read comfortably without tipping your head back. For stacked monitors, avoid placing the upper display so high that you repeatedly look above your natural field of view; stacked layouts work best when the upper screen is for occasional monitoring, not constant reading or gaming.

Practical Next Steps

Start with the desk, not the monitor sale price. Measure the usable surface, decide which screen must be centered, then choose the layout that keeps your primary viewing area at a comfortable distance. A slightly smaller, better-positioned monitor setup usually feels better than a larger layout that forces sideways posture, cable strain, or cramped mouse movement.

Action checklist:

1. Measure usable desk width after subtracting speakers, PC towers, lamps, microphone arms, and permanent accessories.
2. Measure desk depth from the front edge to the wall or rear obstruction, then reserve at least 3 inches behind monitors for cables.
3. Look up each monitor’s physical width, height, stand depth, and weight instead of relying on diagonal size.
4. Center the primary gaming or work monitor with your chair, keyboard, and mouse.
5. For dual equal-use monitors, place them edge-to-edge in a shallow semicircle at similar height and distance.
6. Choose monitor arms only after checking clamp compatibility, rear clearance, desk strength, and monitor weight.
7. Test the layout with cardboard templates or tape before buying two or three large displays.

A practical buying rule: use a 48-inch desk for dual 24-inch monitors, a 60-inch desk for dual 27-inch monitors, and a 72-inch or wider desk for dual 32-inch monitors, triple screens, or ultrawide-plus-secondary layouts. If your desk is under 24 inches deep, prioritize compact stands, monitor arms, smaller panels, or a laptop-plus-portable-monitor layout instead of forcing large angled displays into a shallow space.

FAQ

Q: How wide should a desk be for two 27-inch monitors?

A: Plan for a 55- to 60-inch desk for dual 27-inch monitors. Each 27-inch display is often about 24 inches wide, and the extra width accounts for inward angle, bezels, side clearance, mouse movement, cables, and the fact that the screens should not sit right on the desk edges.

Q: Is a 24-inch-deep desk enough for dual monitors?

A: It can be enough for dual 24-inch monitors or a laptop plus portable monitor, especially with compact stands or arms. For dual 27-inch monitors, 32-inch monitors, or ultrawides, 28 to 30 inches of depth is usually more comfortable because it allows better viewing distance, inward screen angle, keyboard placement, and cable clearance.

Q: Are monitor arms necessary for a multi-monitor setup?

A: No, but they are often useful. Monitor arms free desk surface, improve height and angle adjustment, and make large mouse pads easier to place. They are not a cure-all: you still need rear clearance, a compatible clamp surface, enough desk strength, and arms rated for the weight and size of your displays.

References

• Canadian Centre for Occupational Health and Safety, Office Ergonomics - Positioning the Monitor
• KTC, How to Measure Monitor for Dual Setup: Desk Fit Guide
• XDA Developers, Ultrawide vs dual monitors: What I miss and regret
• WIRED, I Finally Found a Work Computer Setup That’s Practically Perfect
• University of California Office of the President, Dual Monitors
